SportScreen Vanish Series

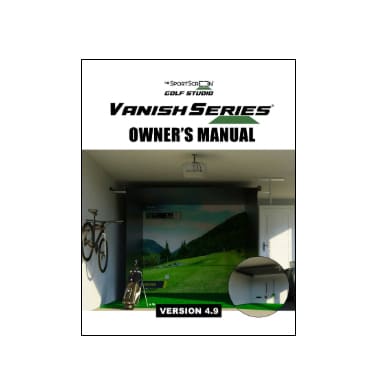

Owners Manual PDF

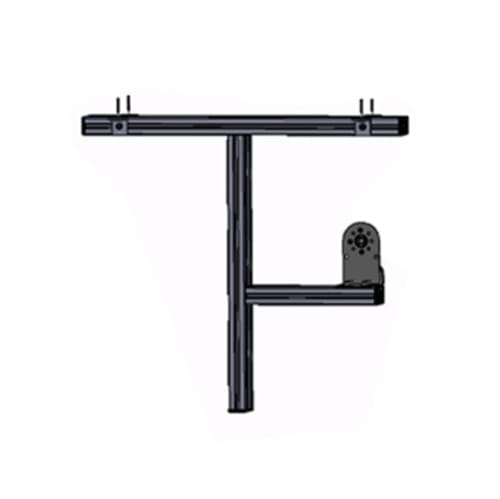

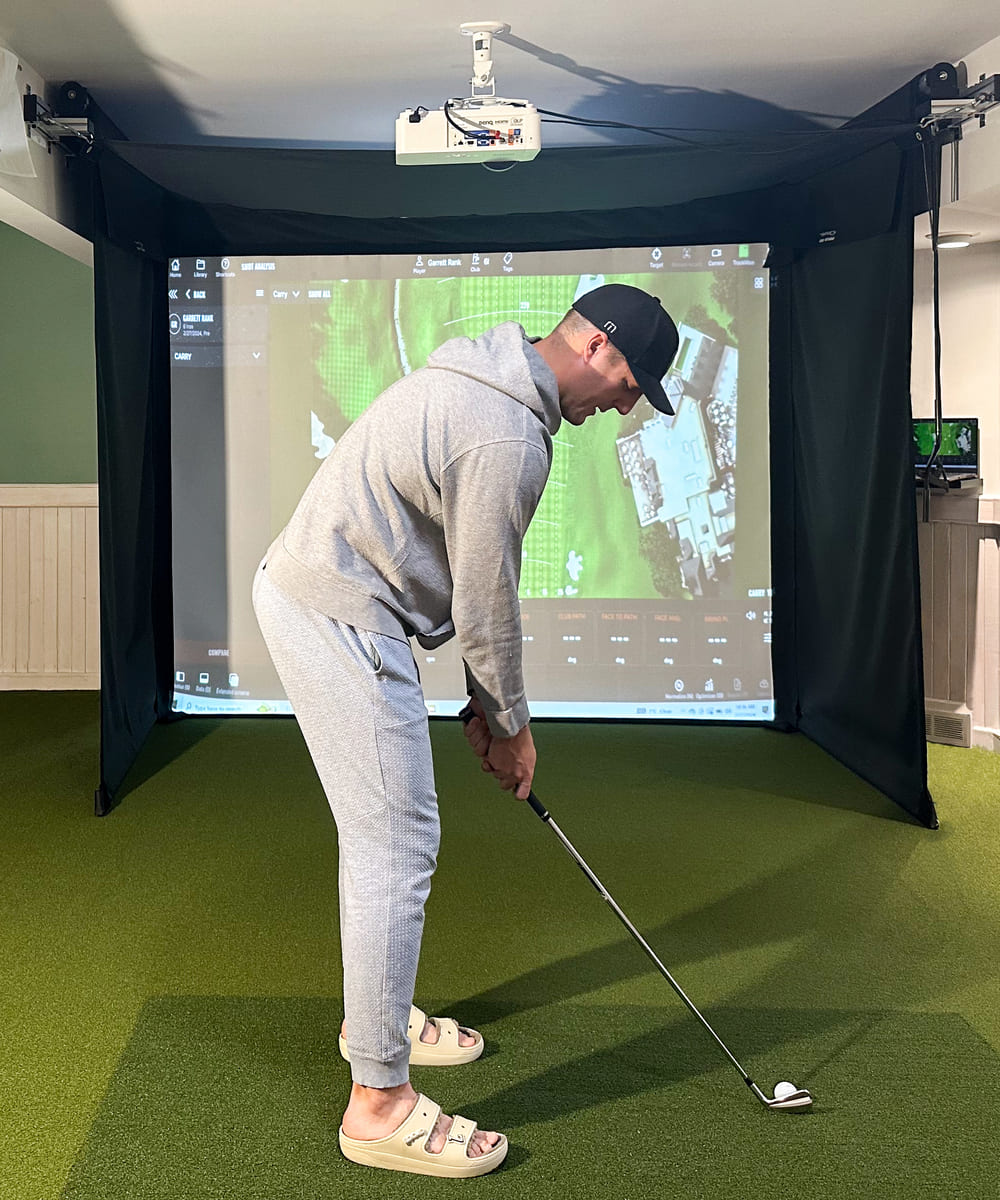

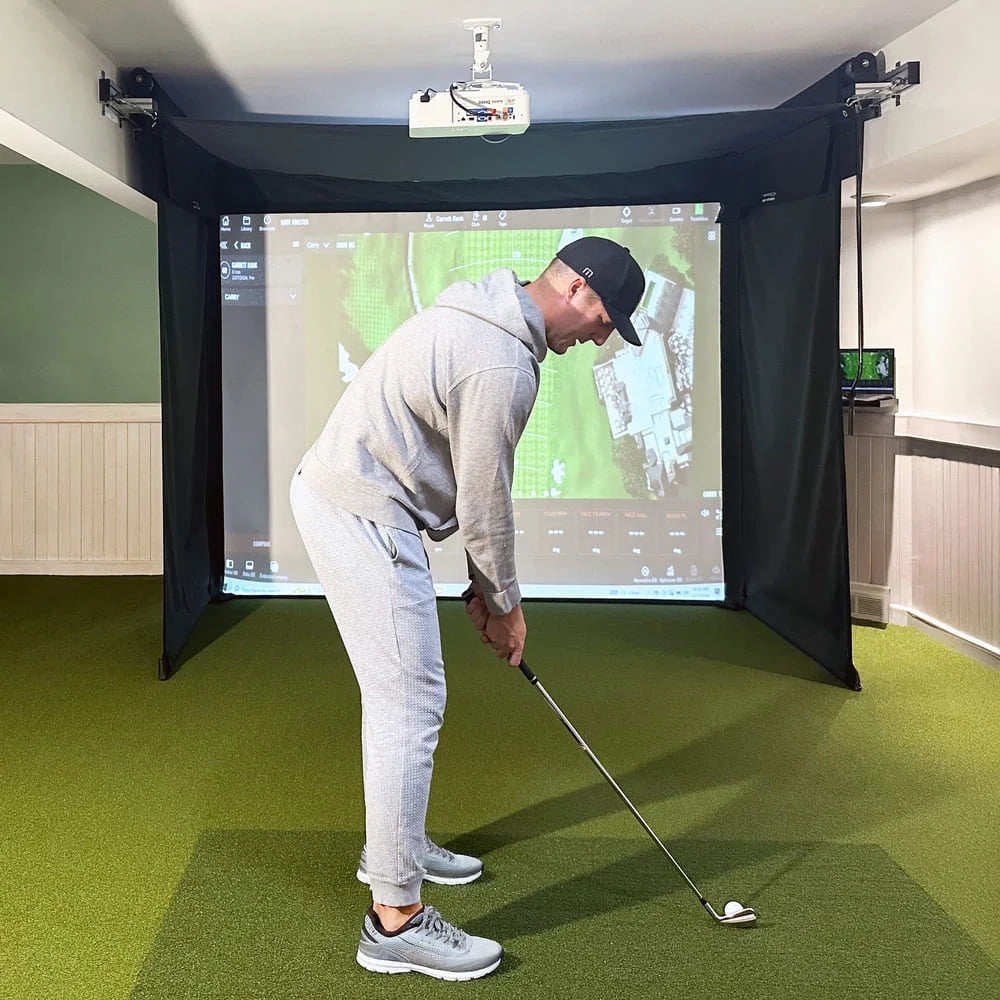

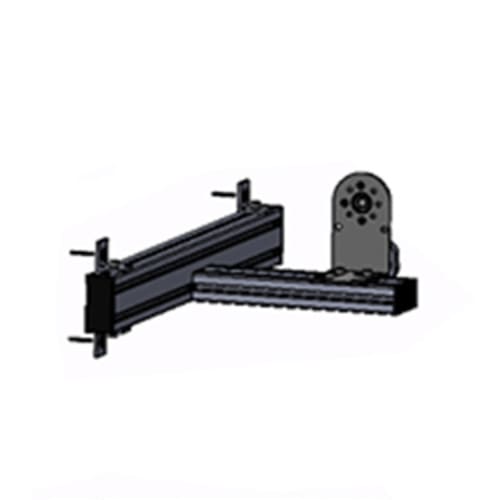

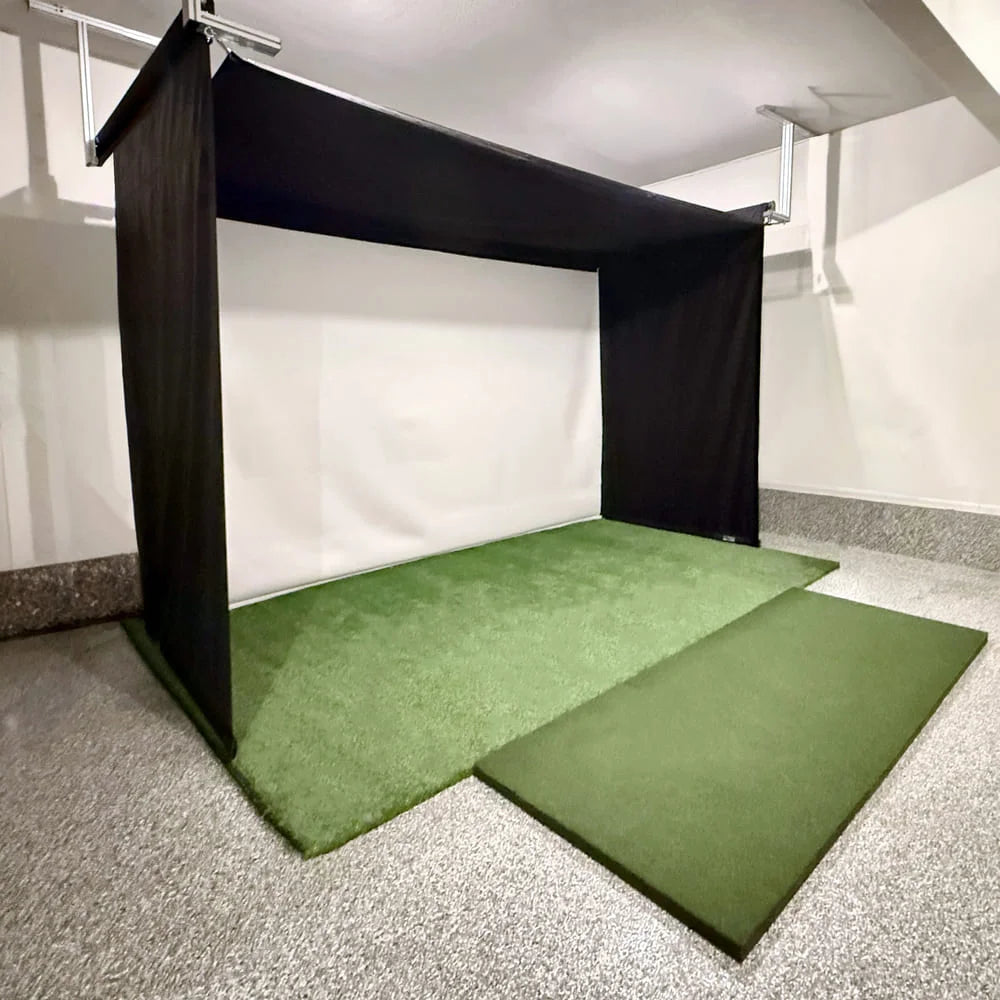

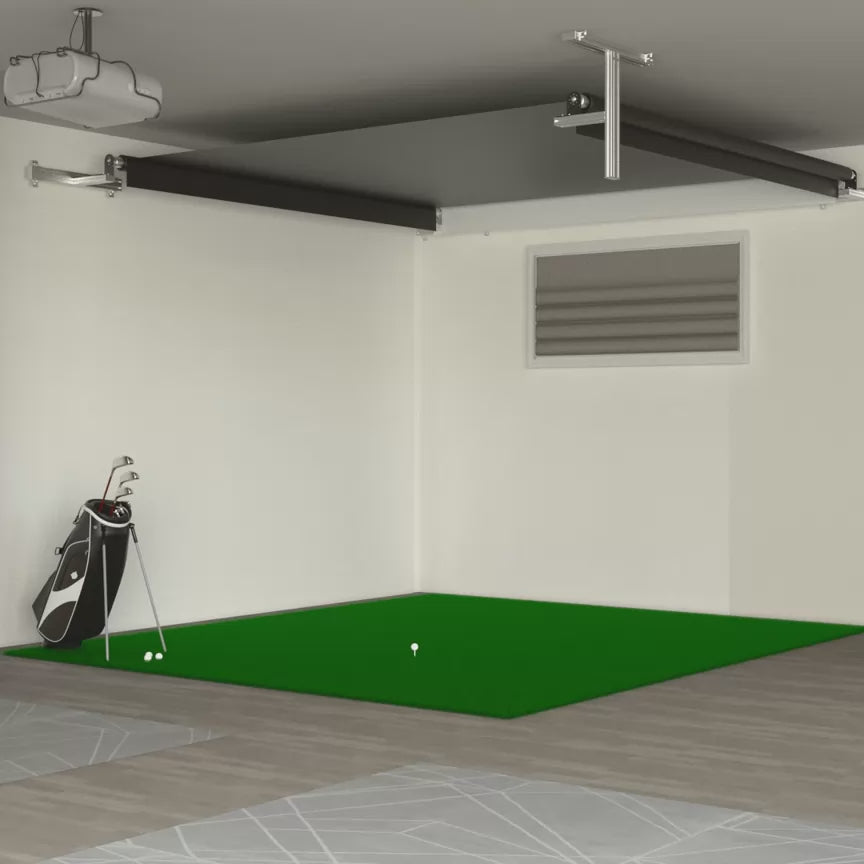

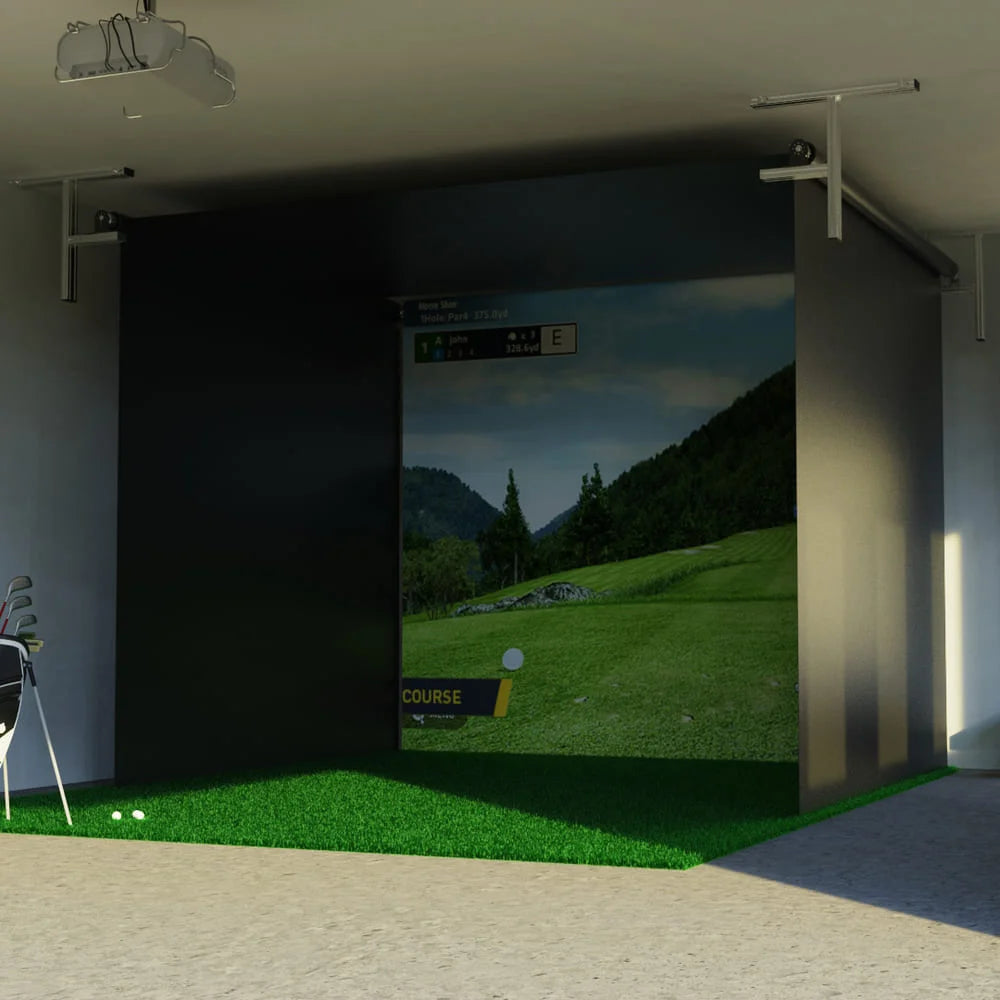

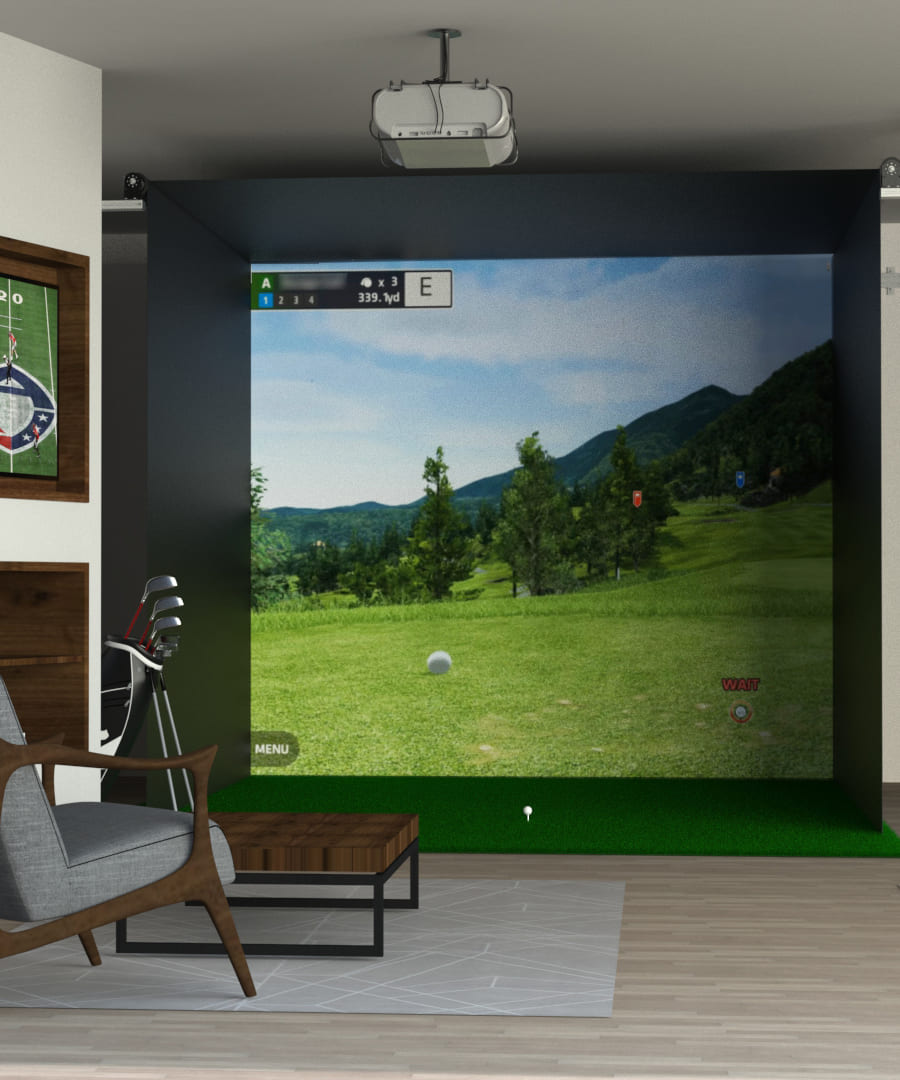

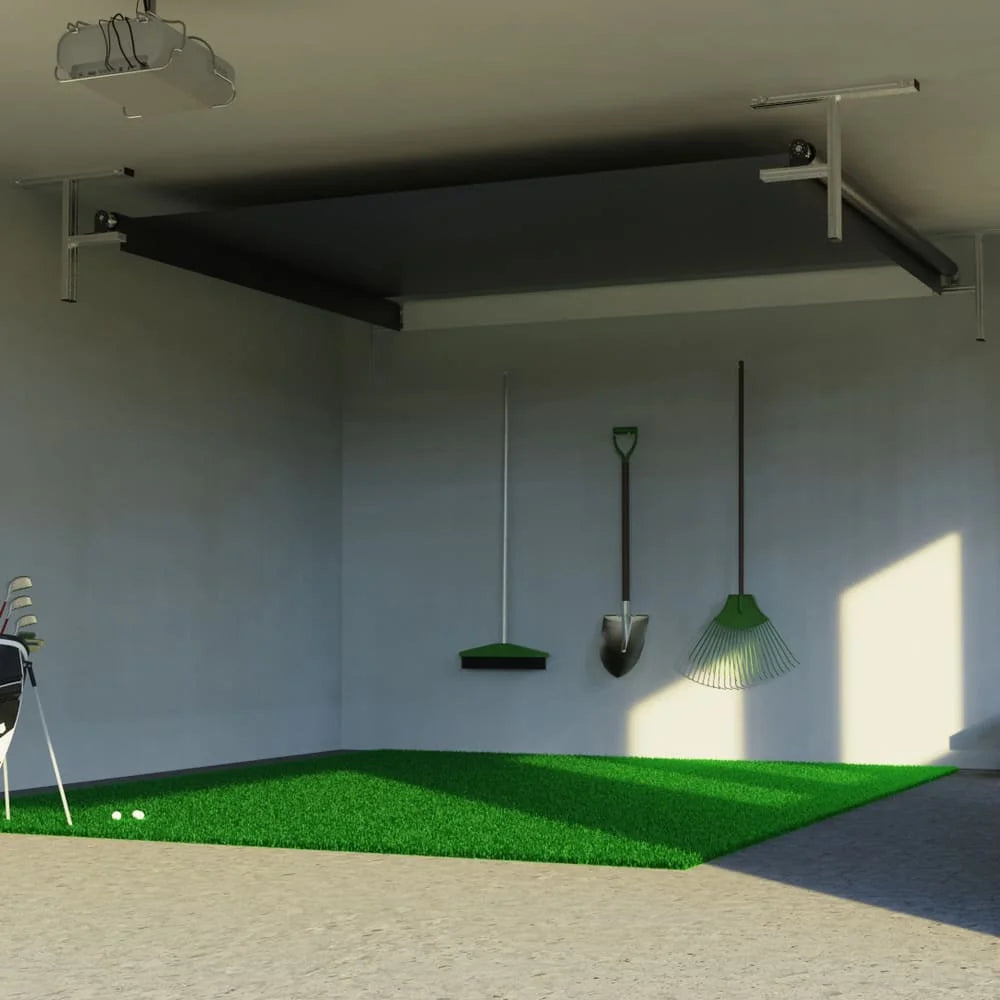

Setting up the Vanish Sport Screen is a straightforward, step-by-step process that begins with preparation and mounting. First, unpack all components and check them against the contents list. Clear the chosen installation area, ensuring there is at least 30 cm of clearance behind the screen. Secure the universal mounting brackets to a solid structure, such as wall studs or ceiling joists. Once the brackets are fixed, assemble the aluminium roller tubes and fit these assemblies into the mounted brackets.

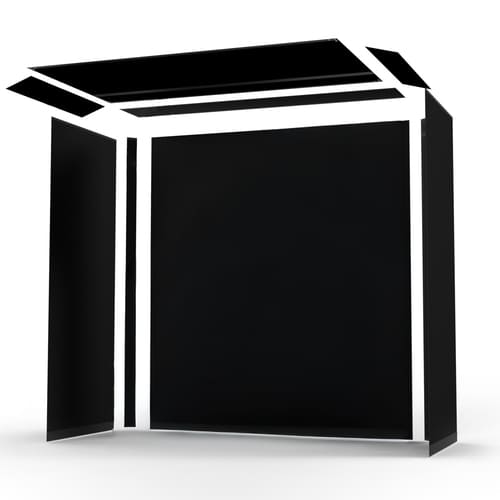

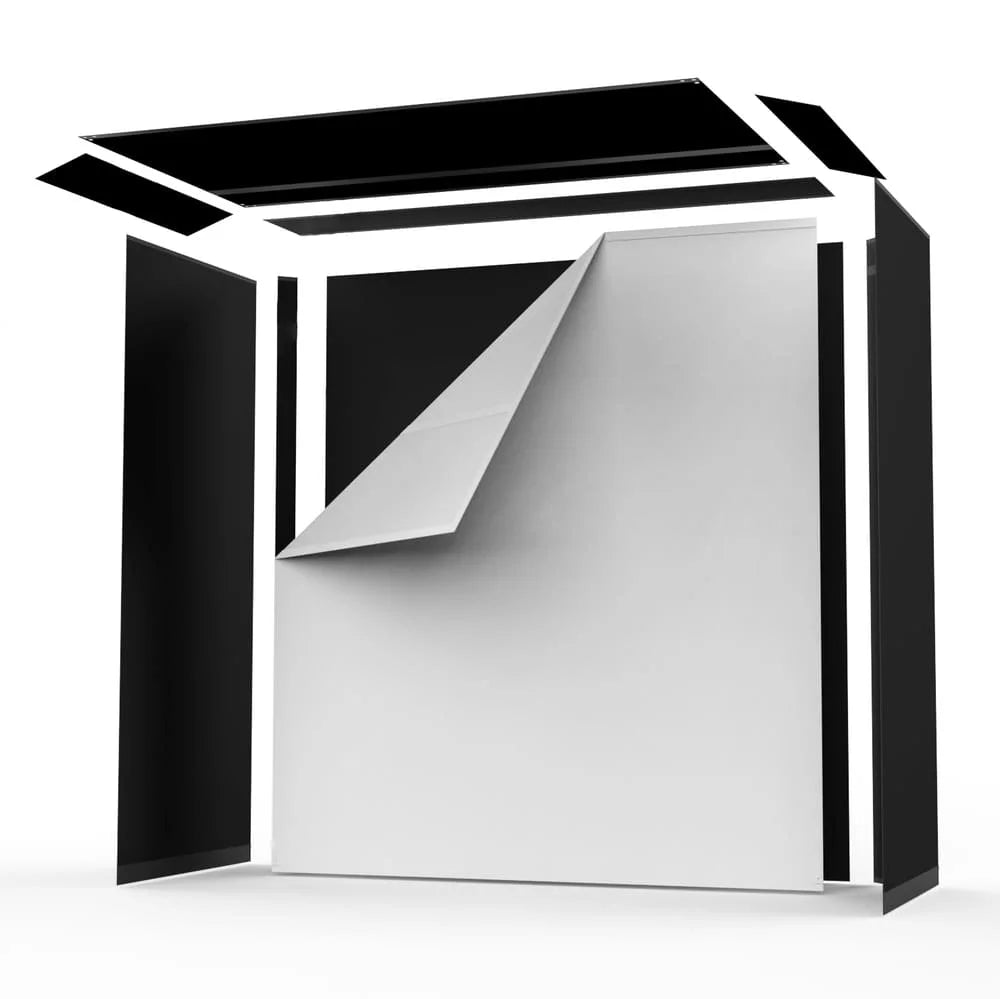

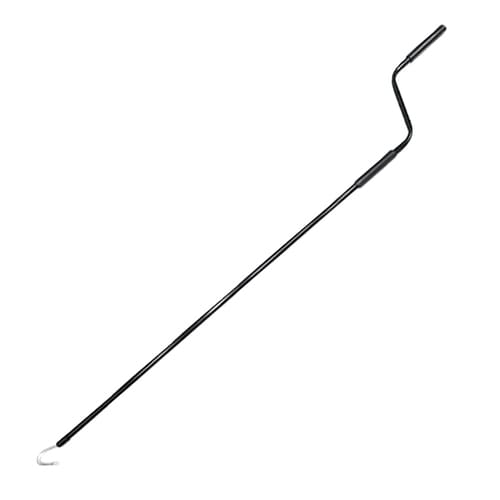

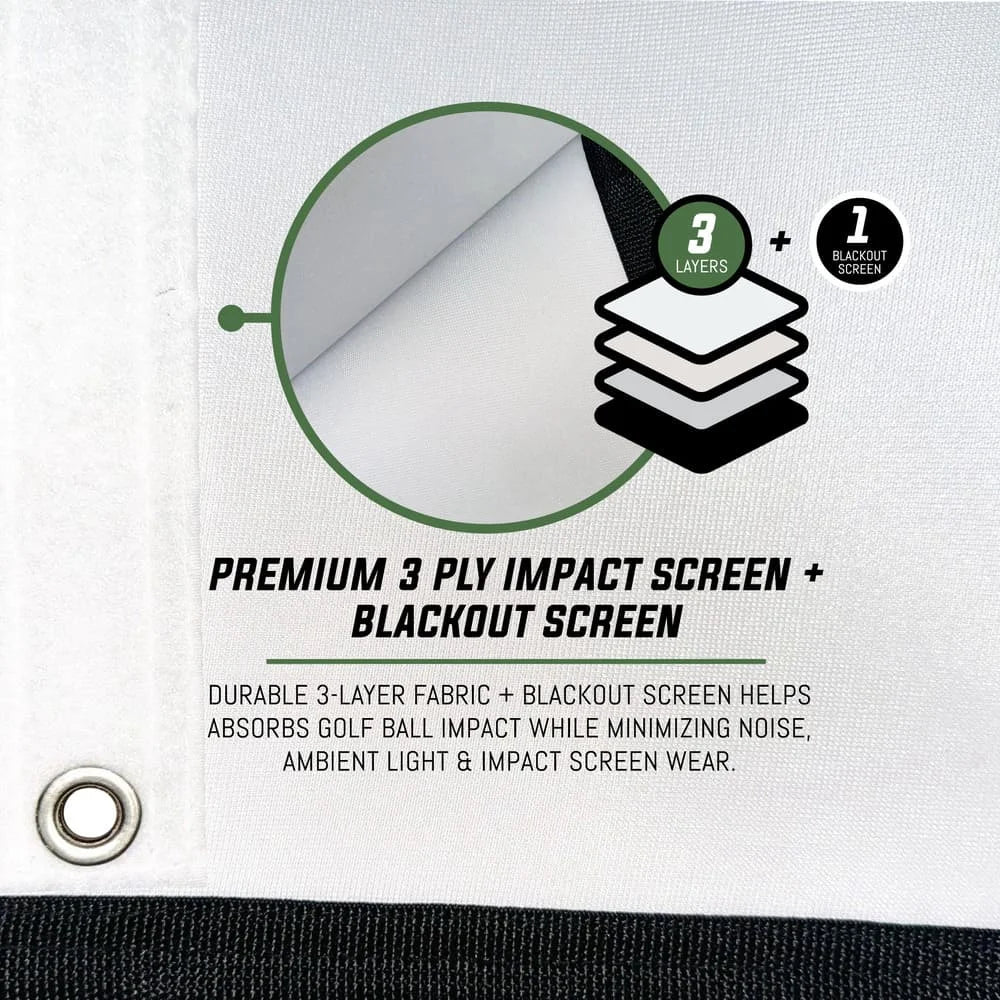

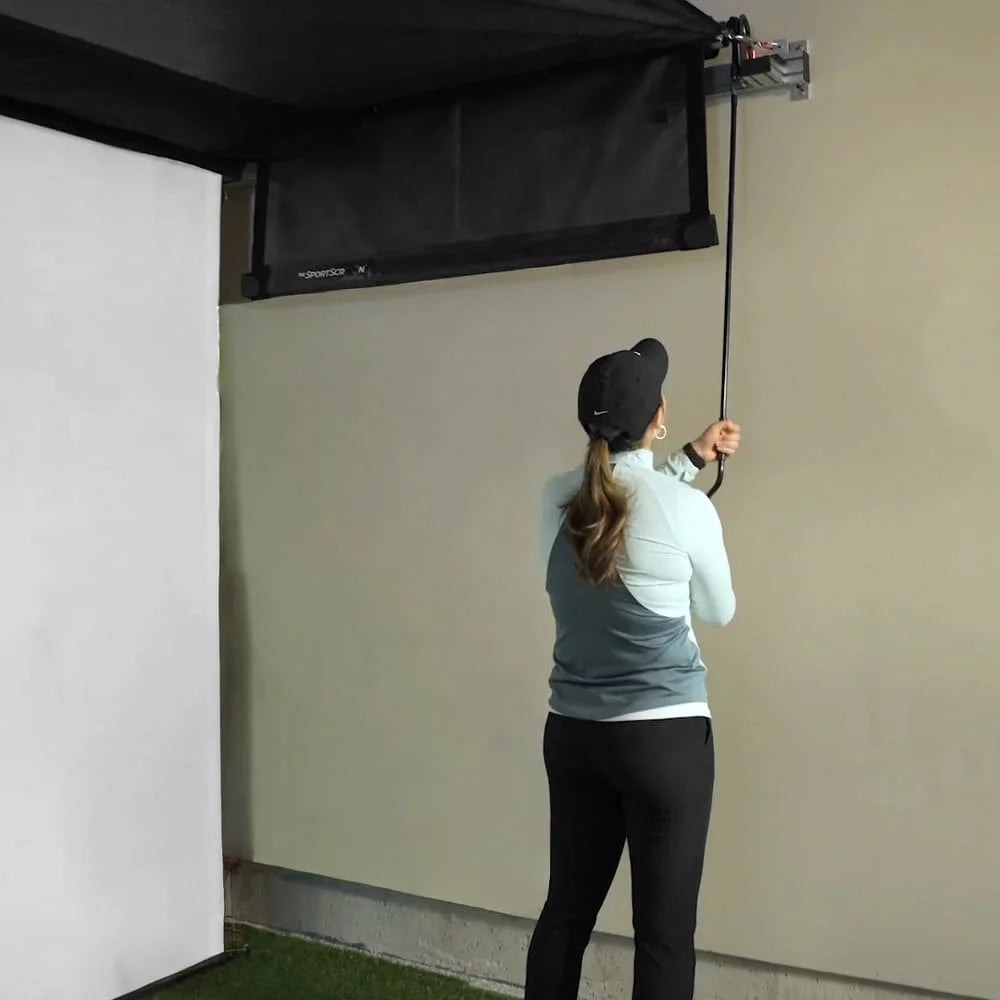

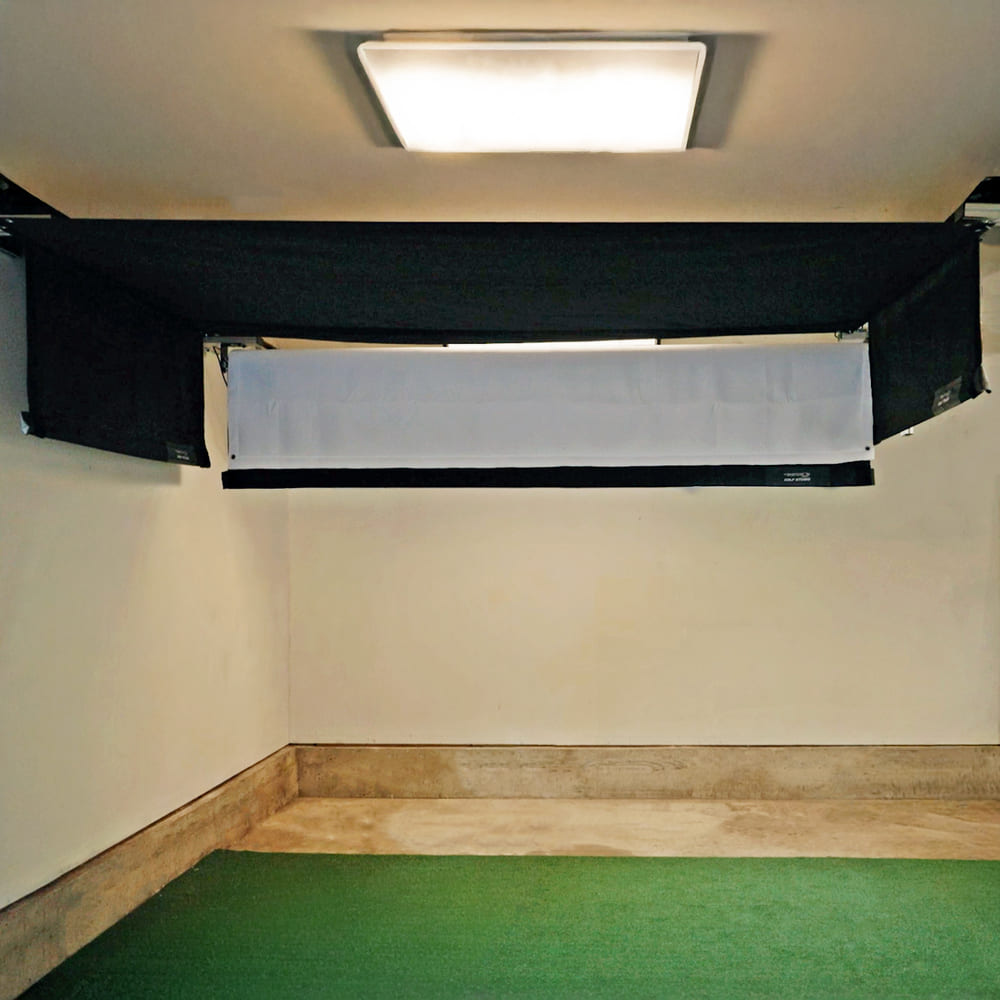

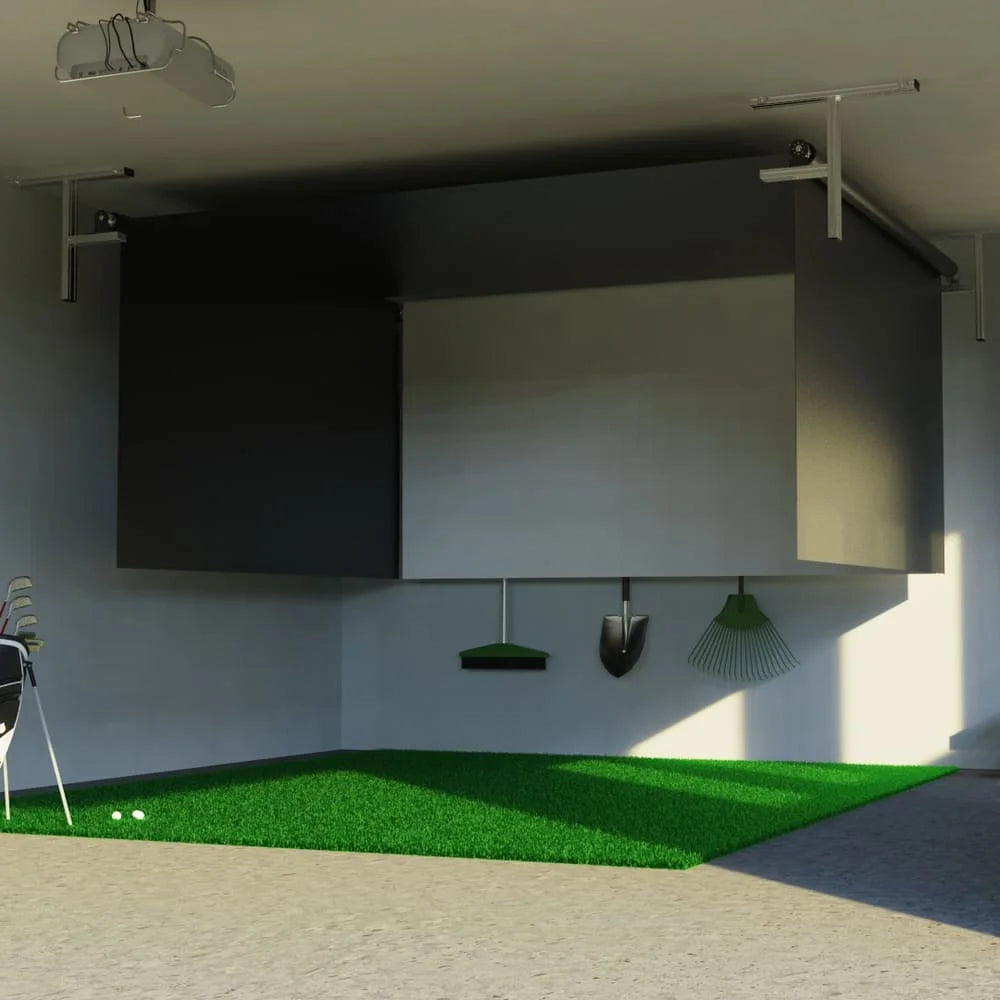

Next, attach the screens and configure the system. Fix the main screen, along with any optional side screens or ceiling baffles, to their respective rollers using the integrated hook-and-loop (Velcro-style) strips. For the motorised version, connect the power lead to a standard 110 V socket. The final key step is to pair the remote control with the motor and set the upper and lower stop positions so the screen automatically halts at the desired height. Once everything is connected and the limits are set, test the system thoroughly to confirm smooth, even operation.

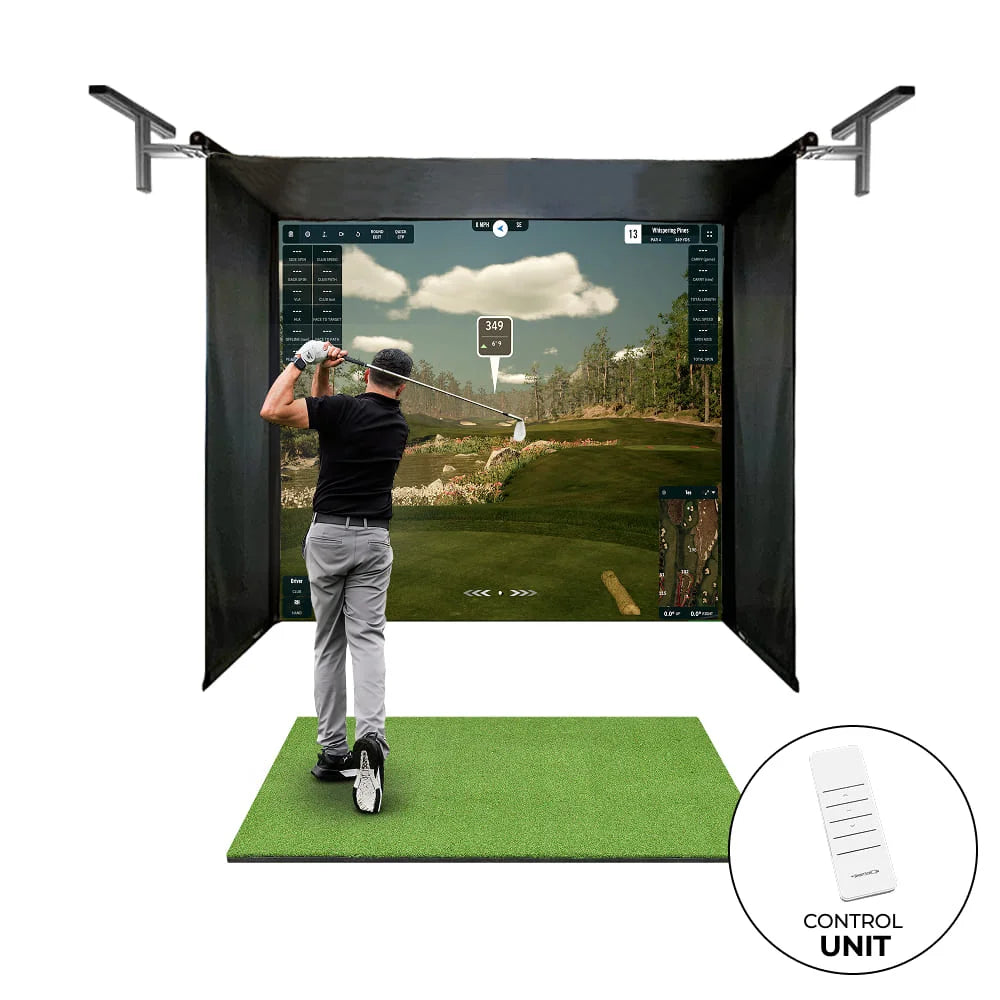

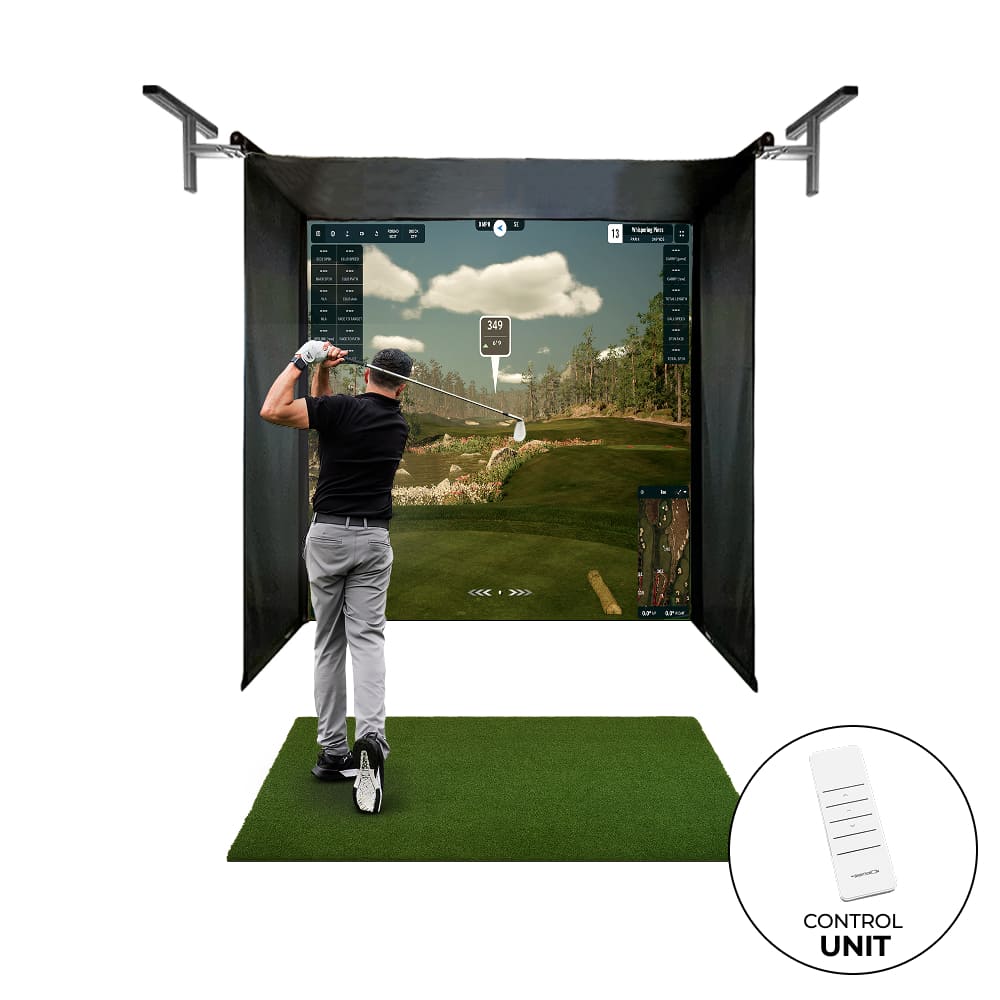

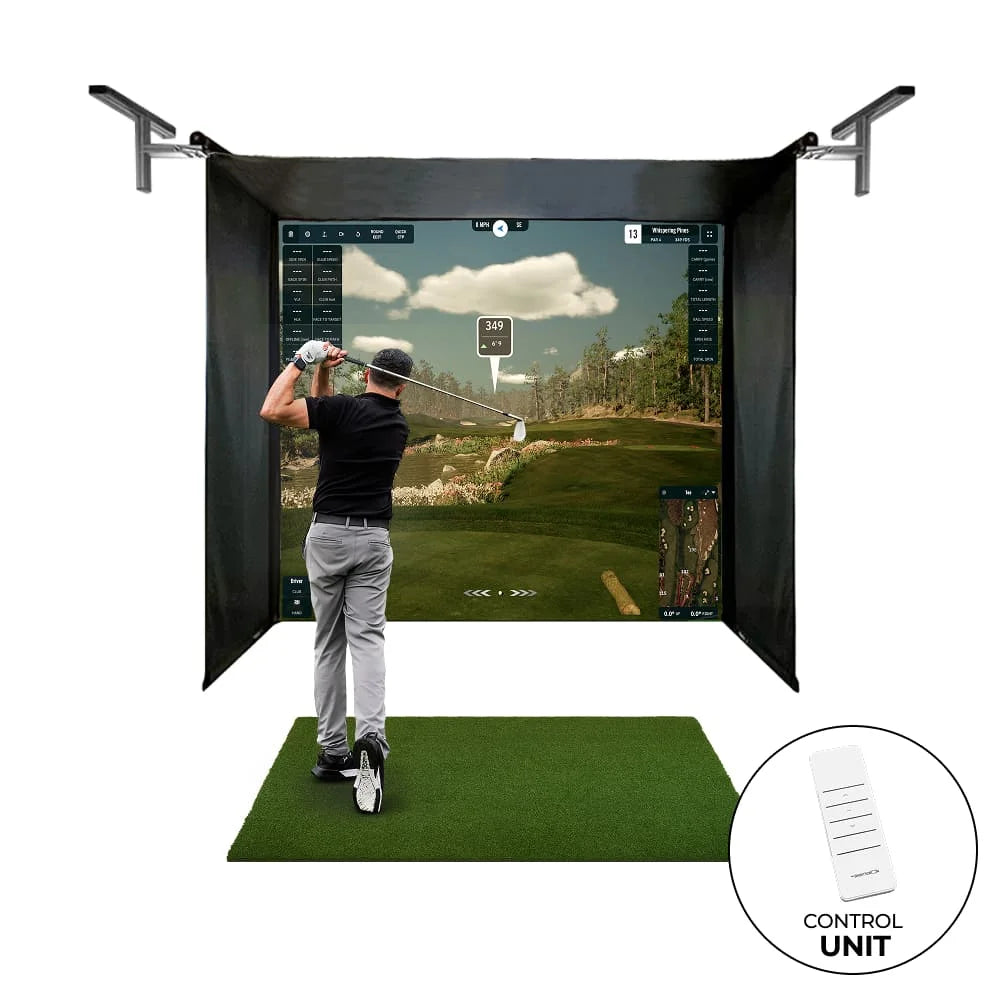

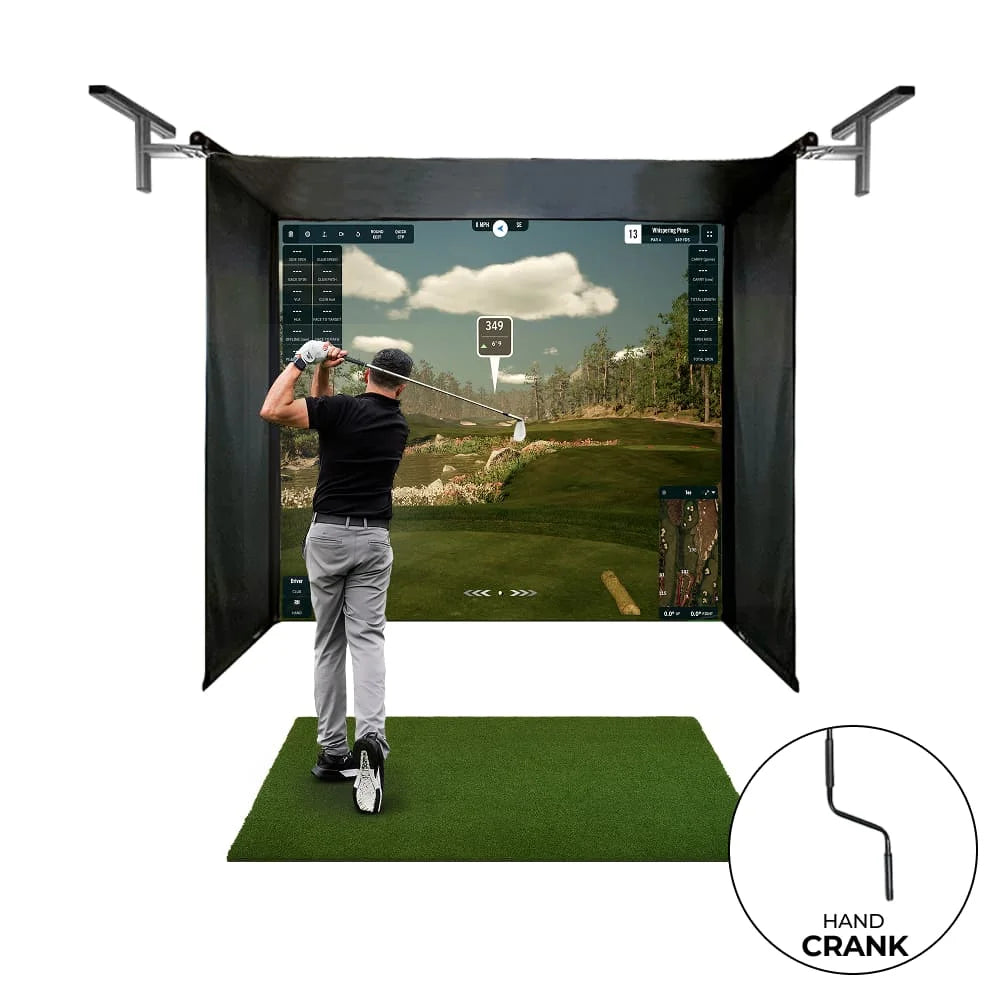

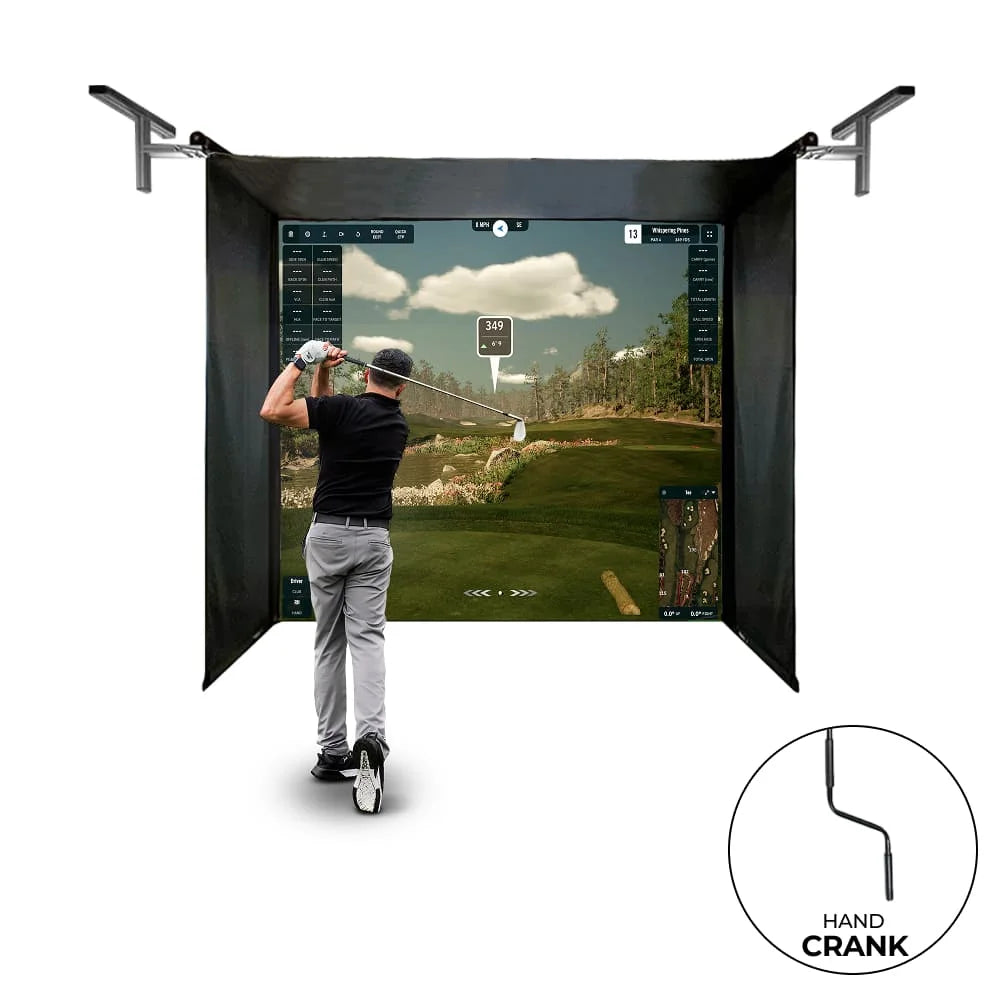

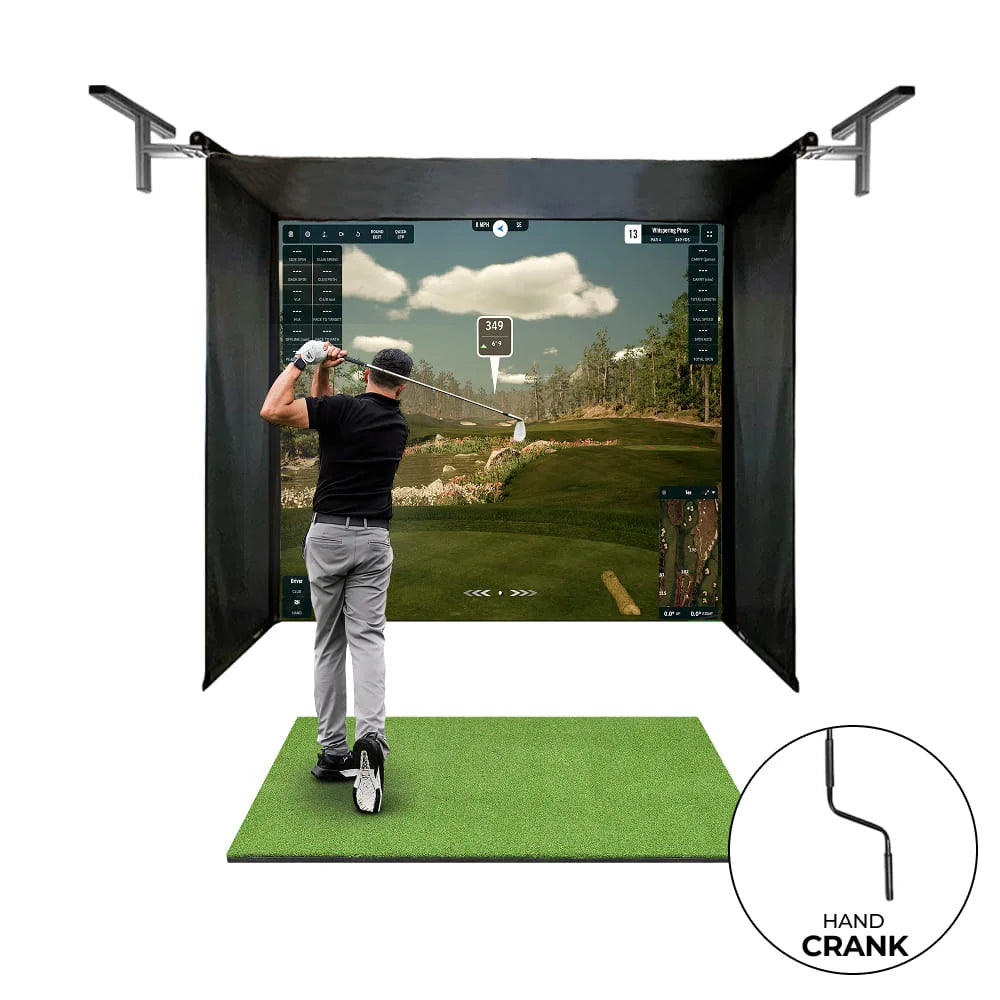

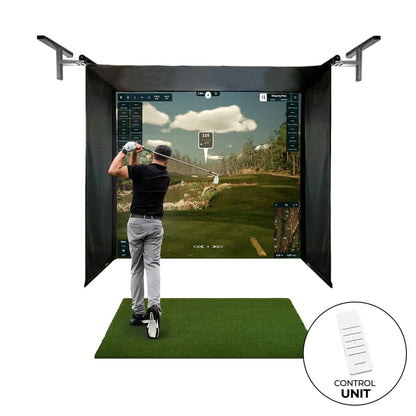

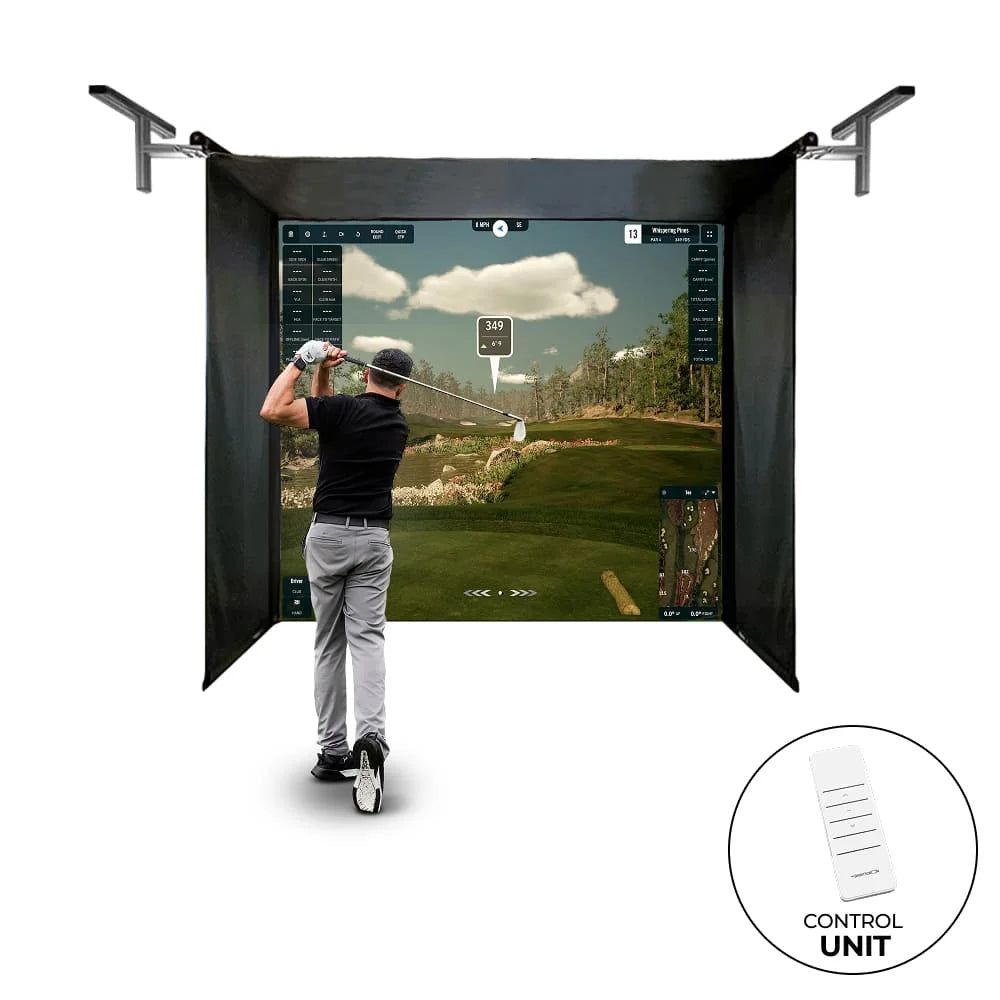

Vanish 11
• Width - 3.1 m (10"3' ft)
• Height - 2.5 > 2.6 m (8"3' > 8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

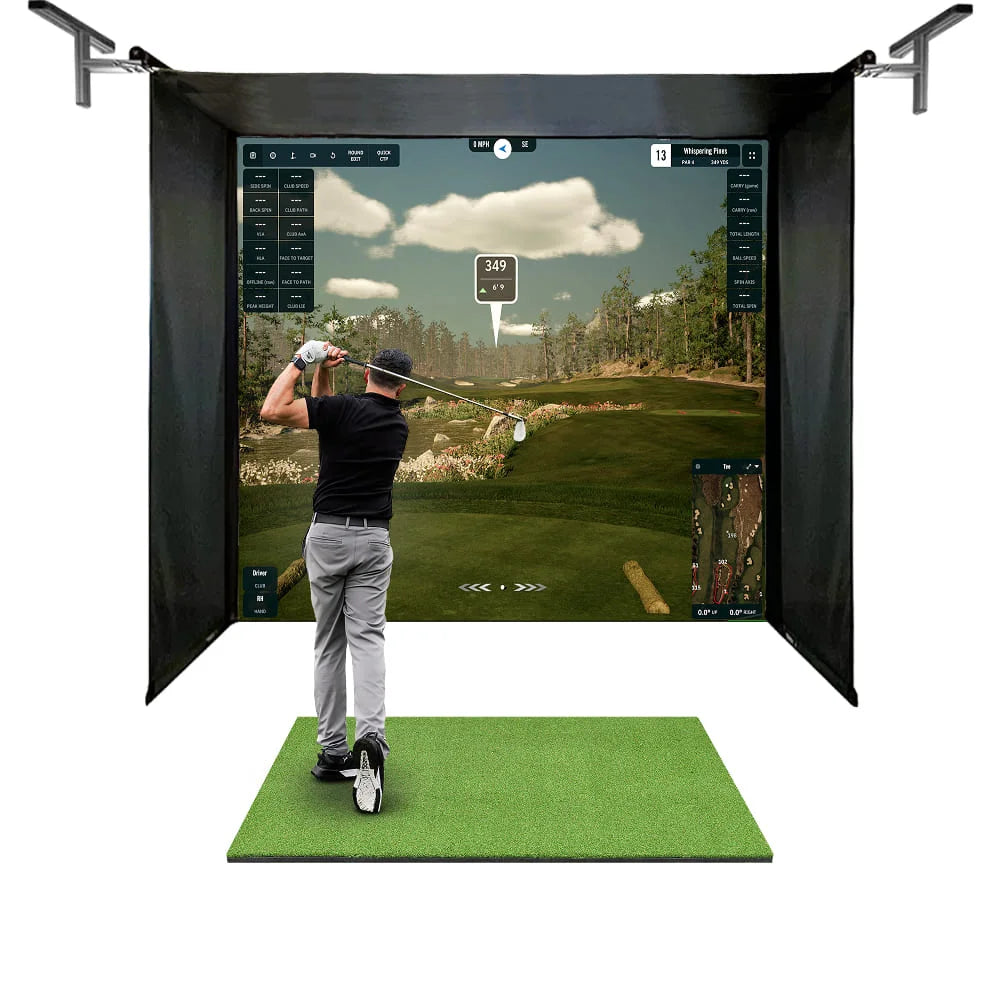

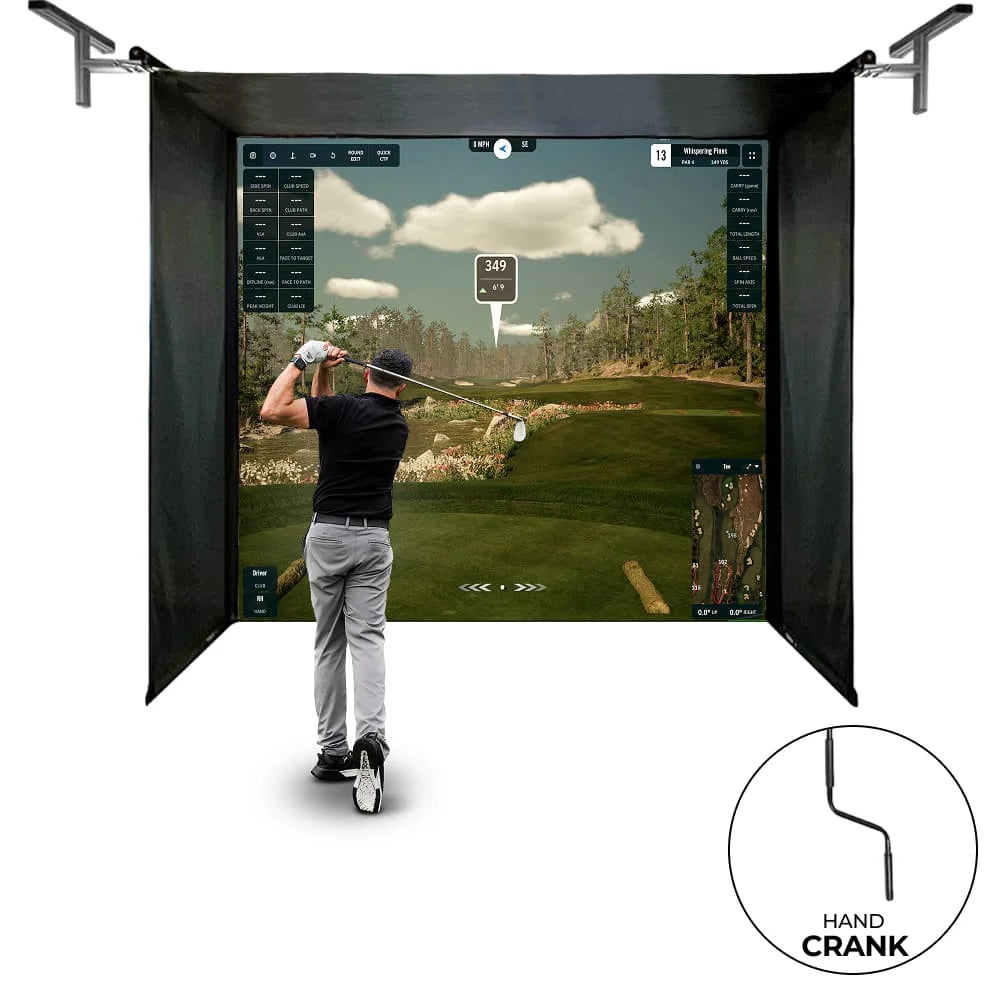

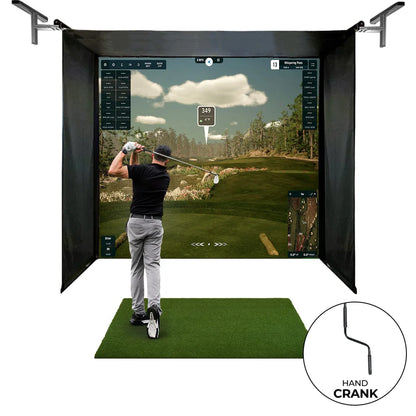

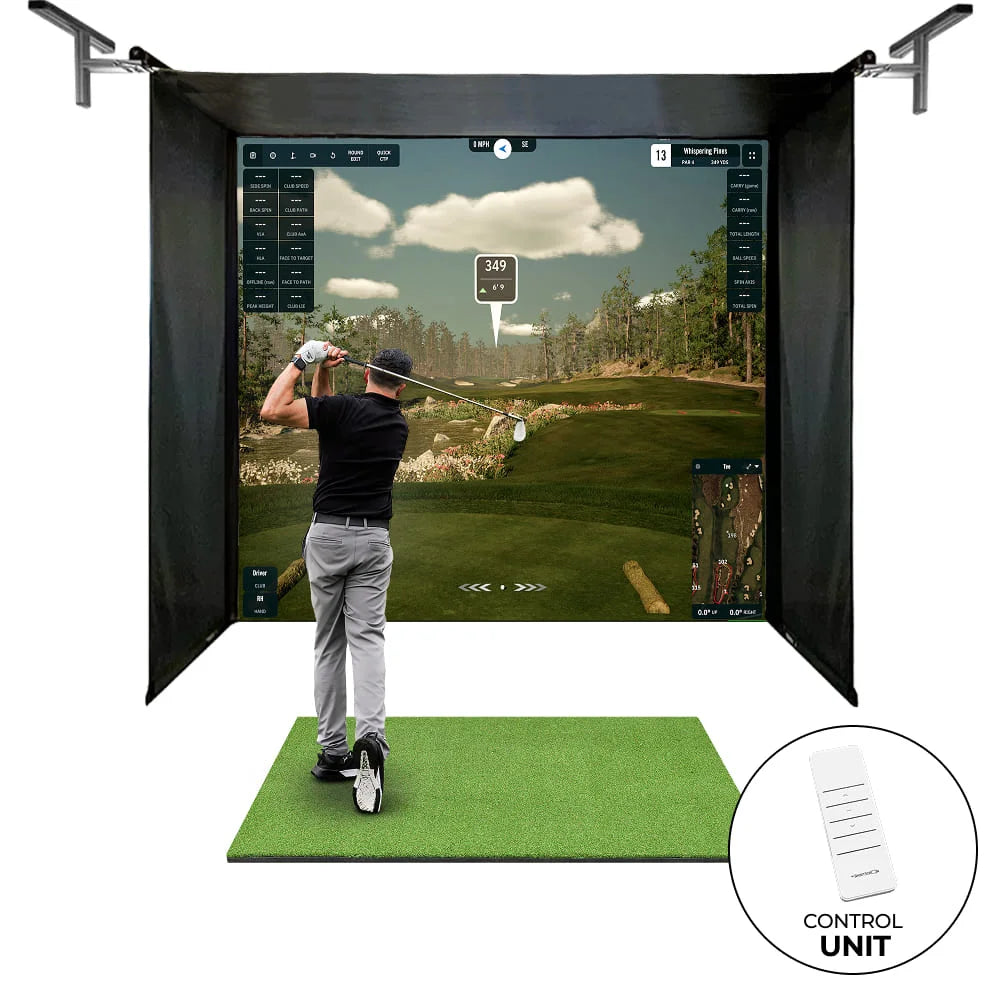

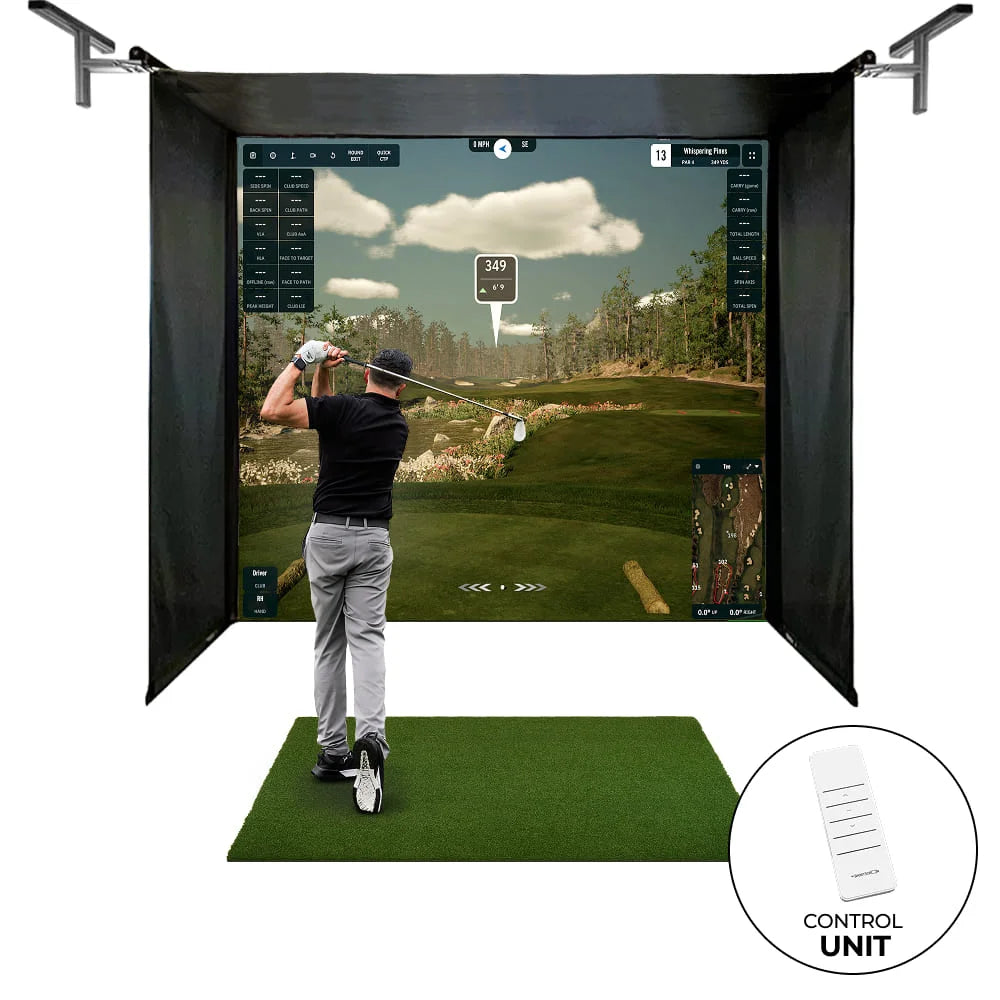

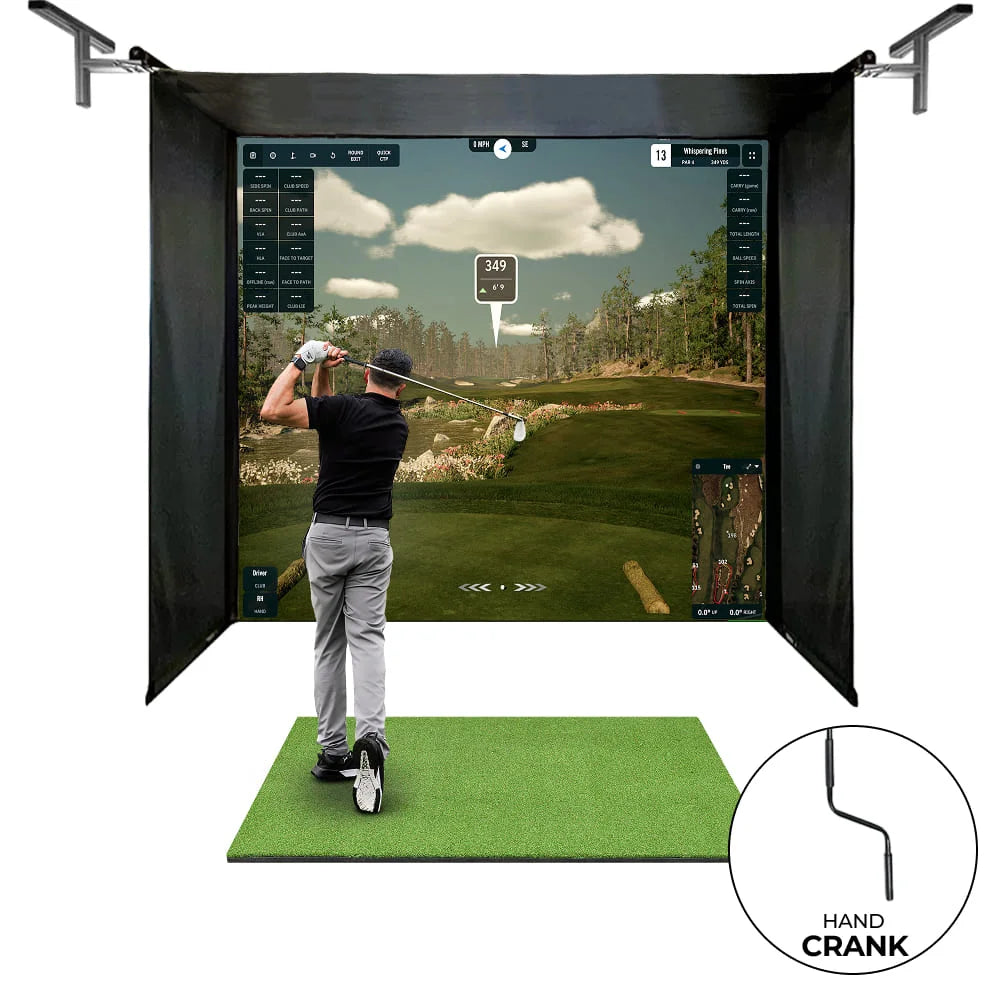

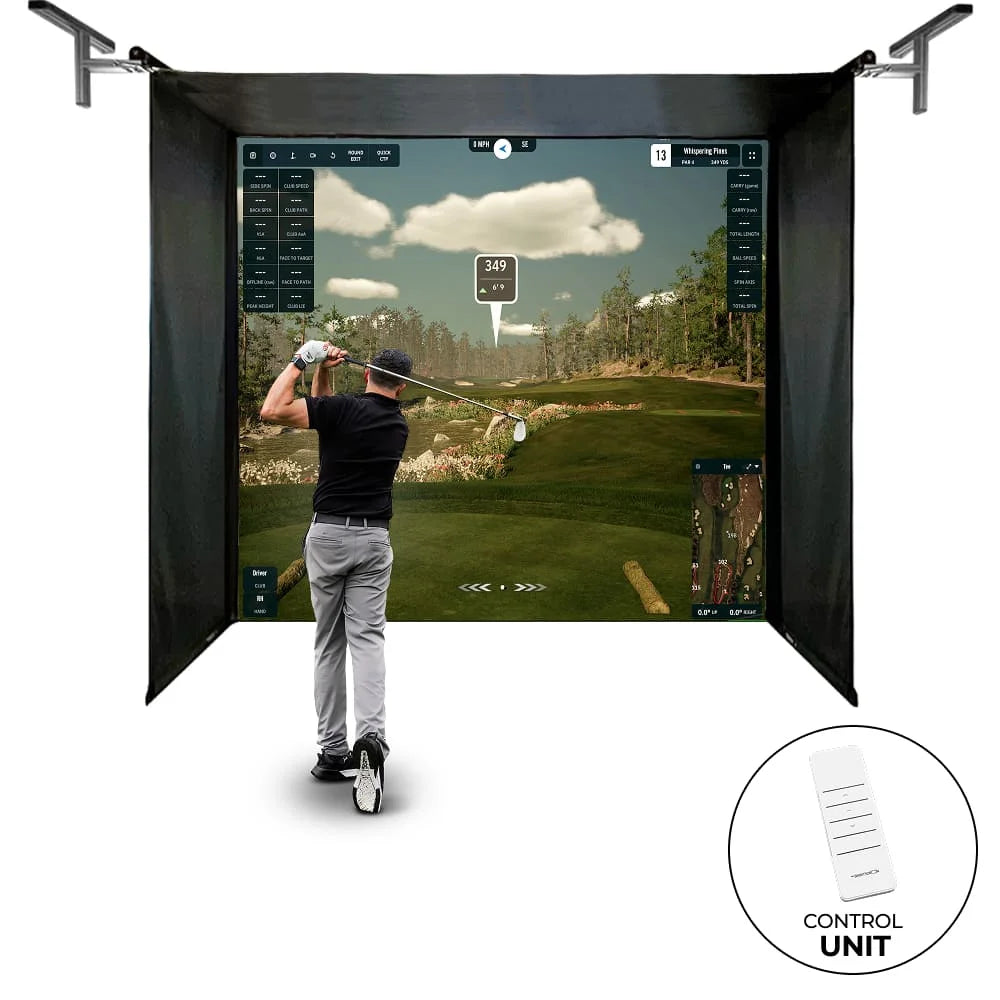

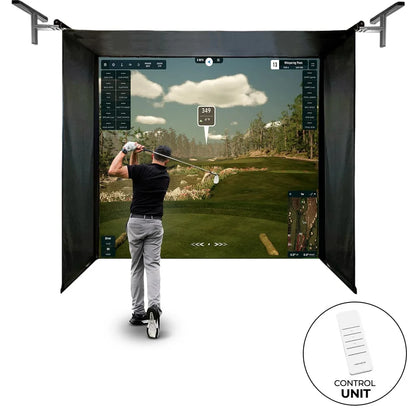

Vanish 13H
• Width - 3.7 m (12"3' ft)
• Height - 2.9 > 3 m (9"8' > 9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

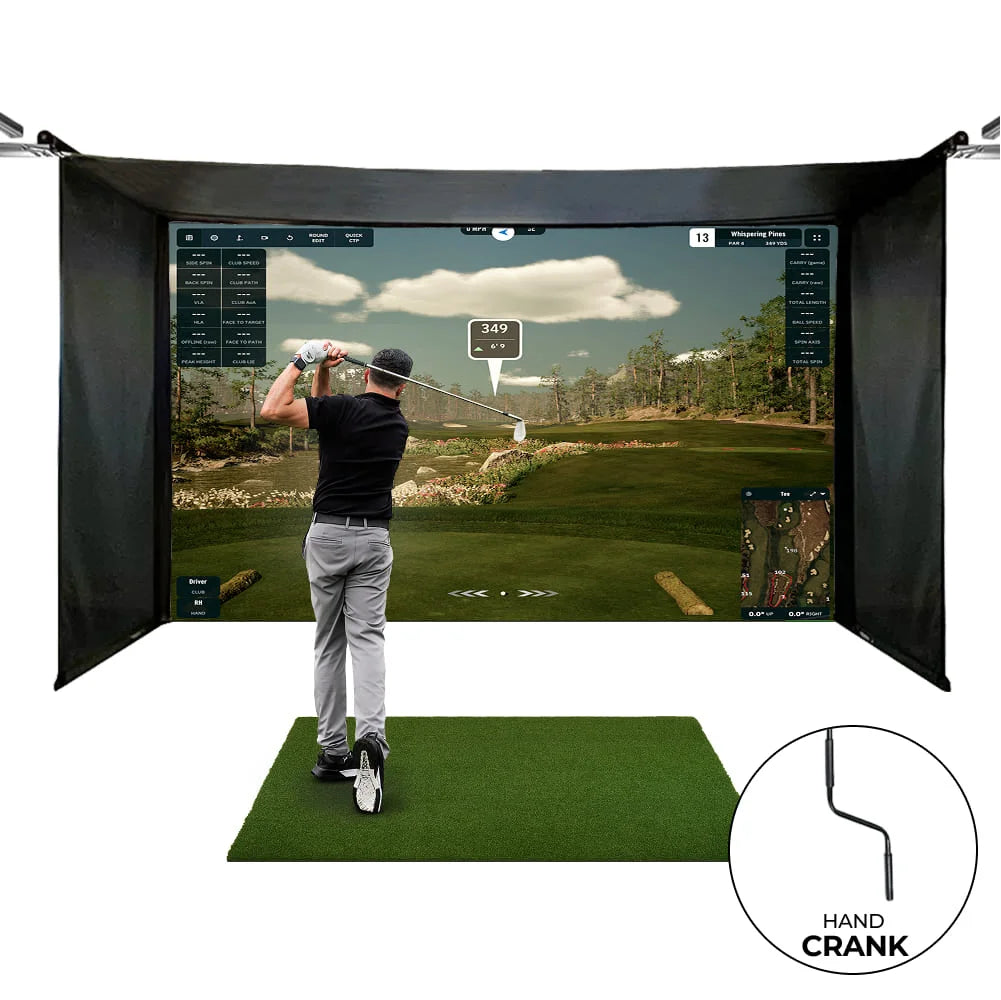

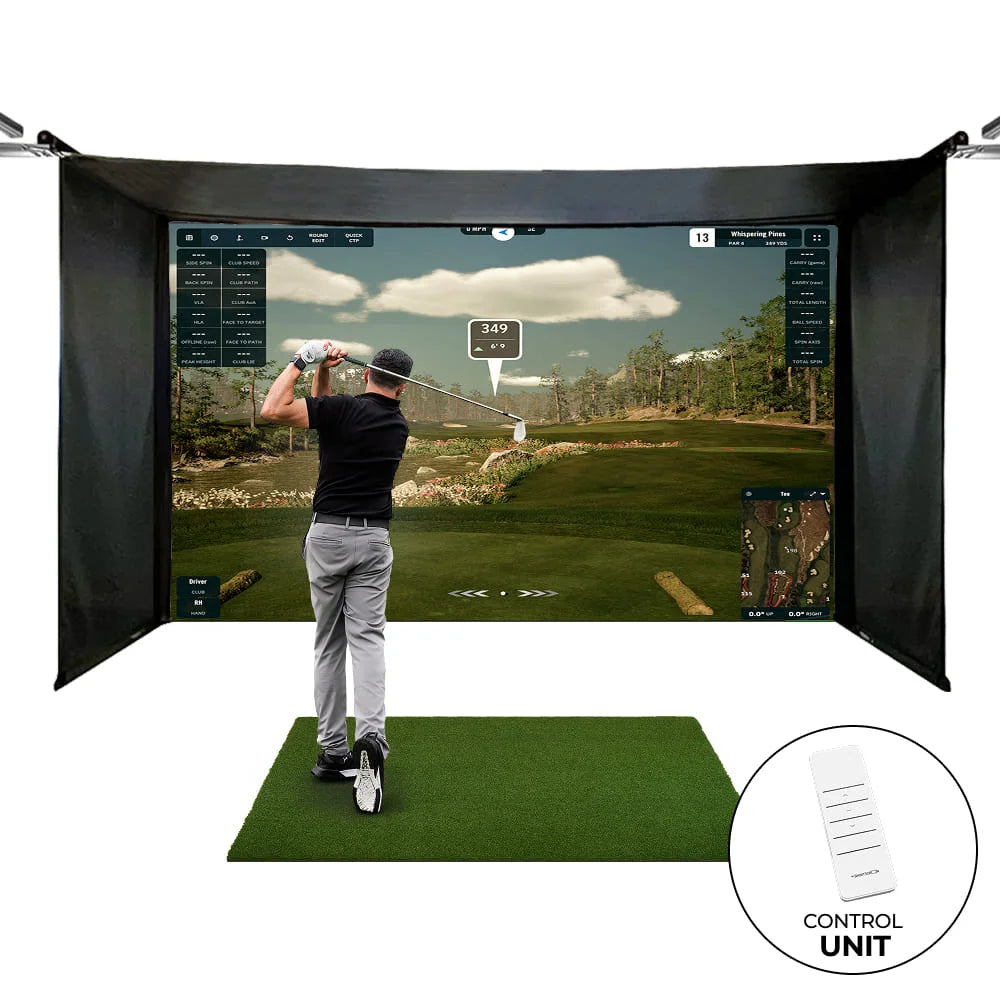

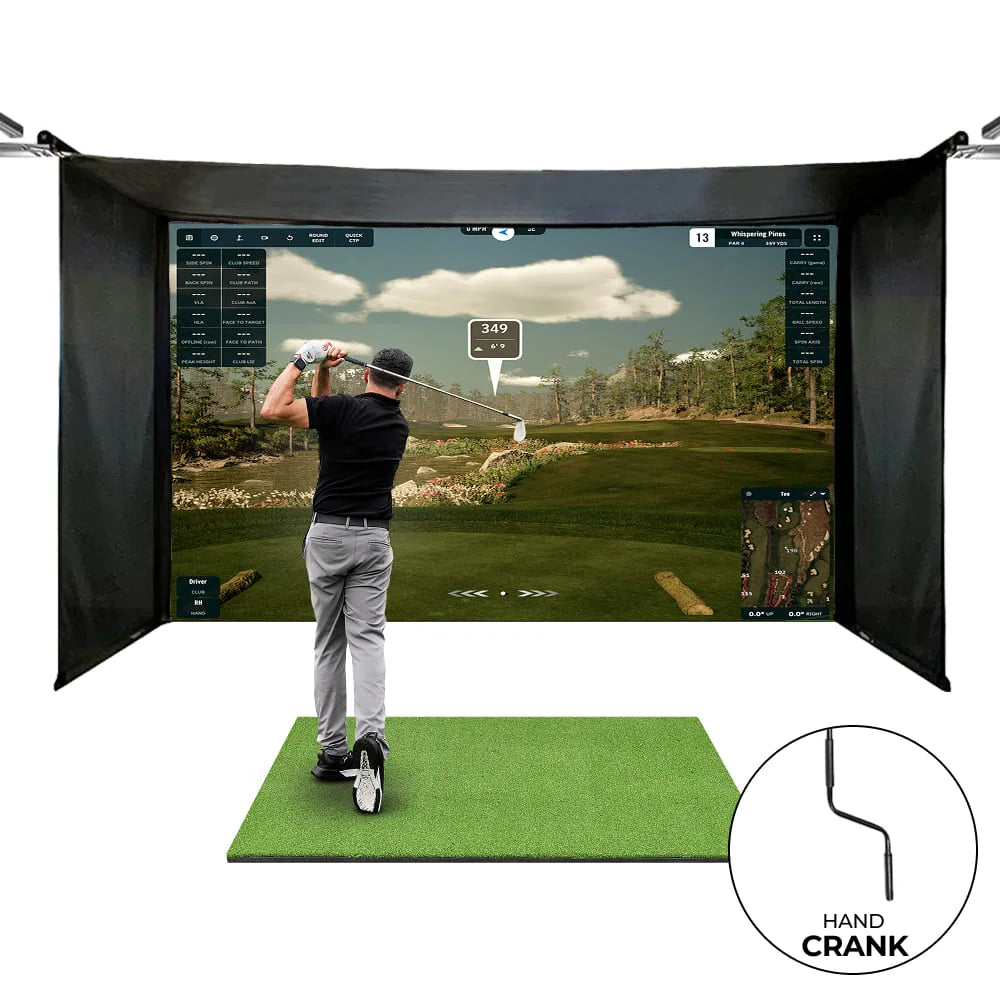

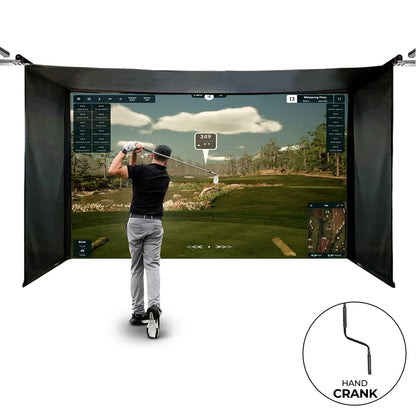

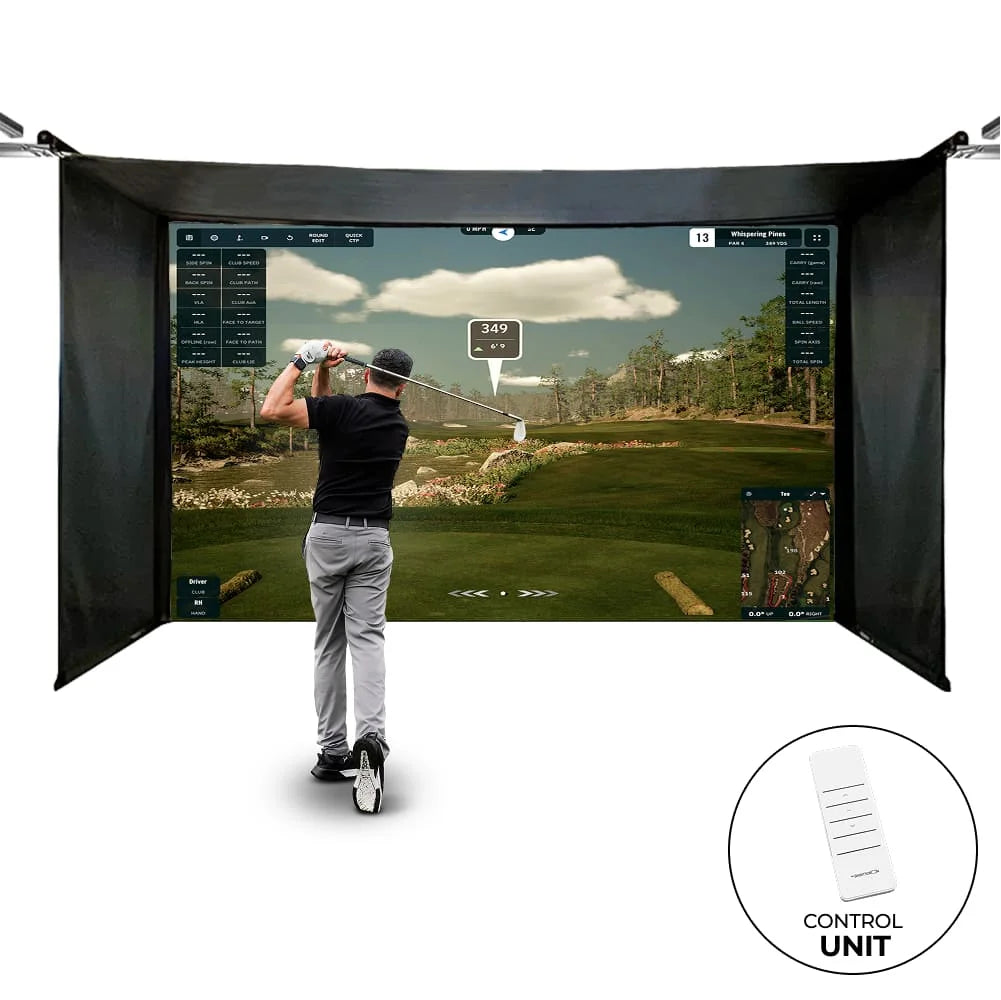

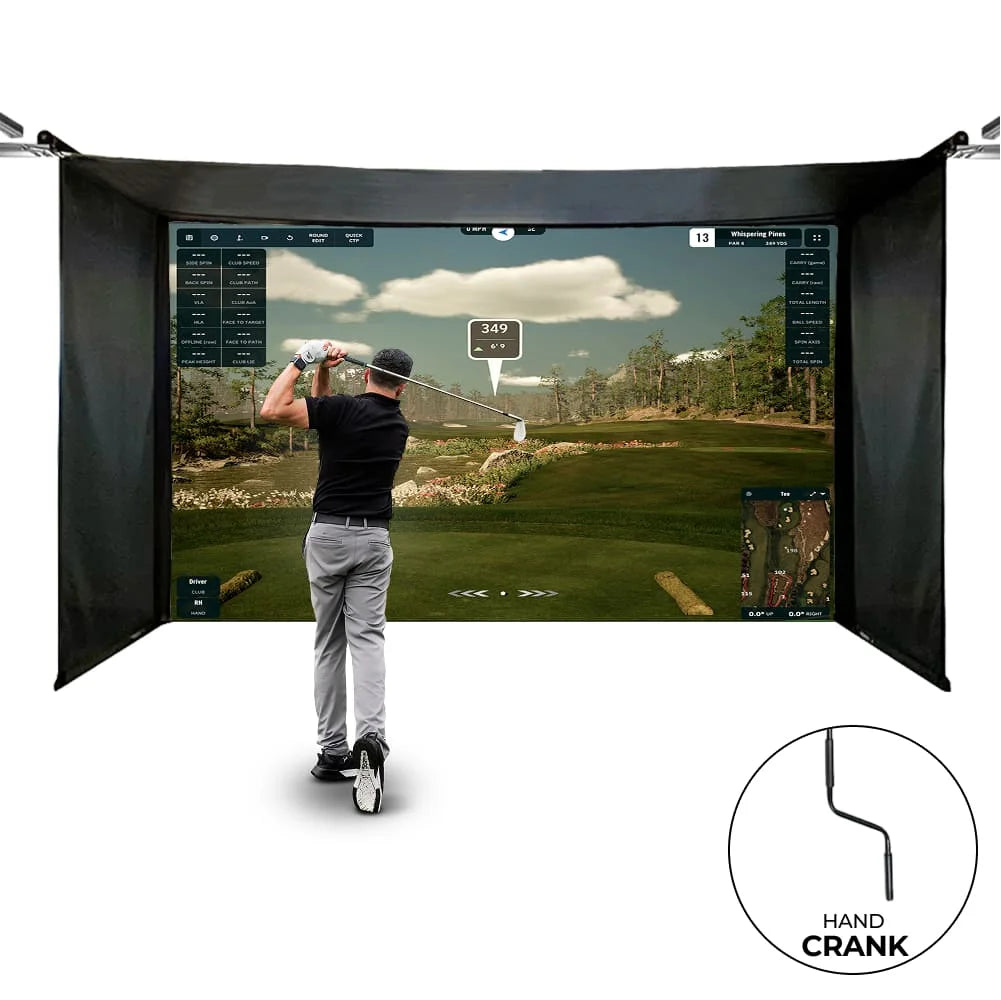

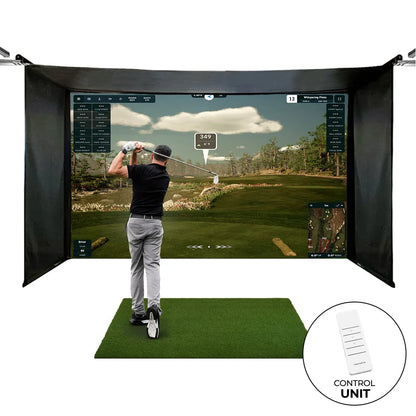

Vanish 16
• Width - 4.7 m (15"6' ft)
• Height - 2.5 > 2.6 m (8"3' > 8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

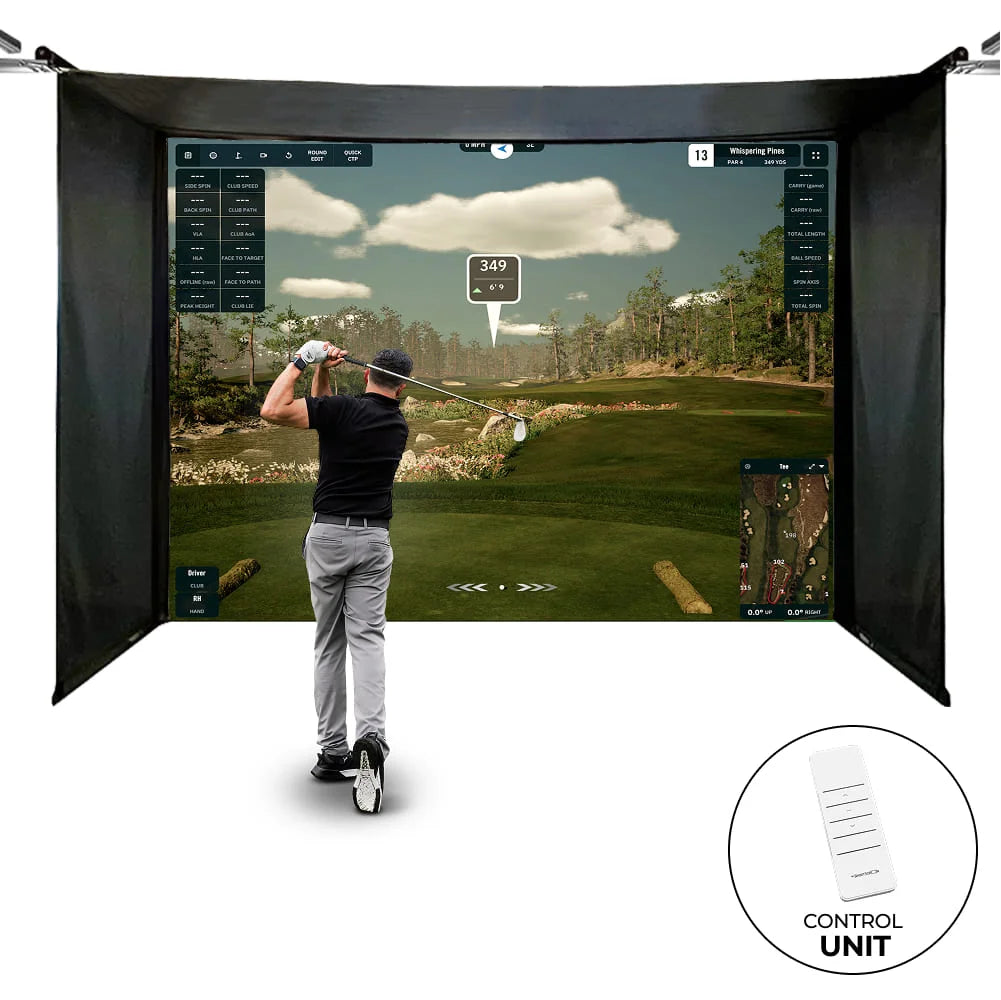

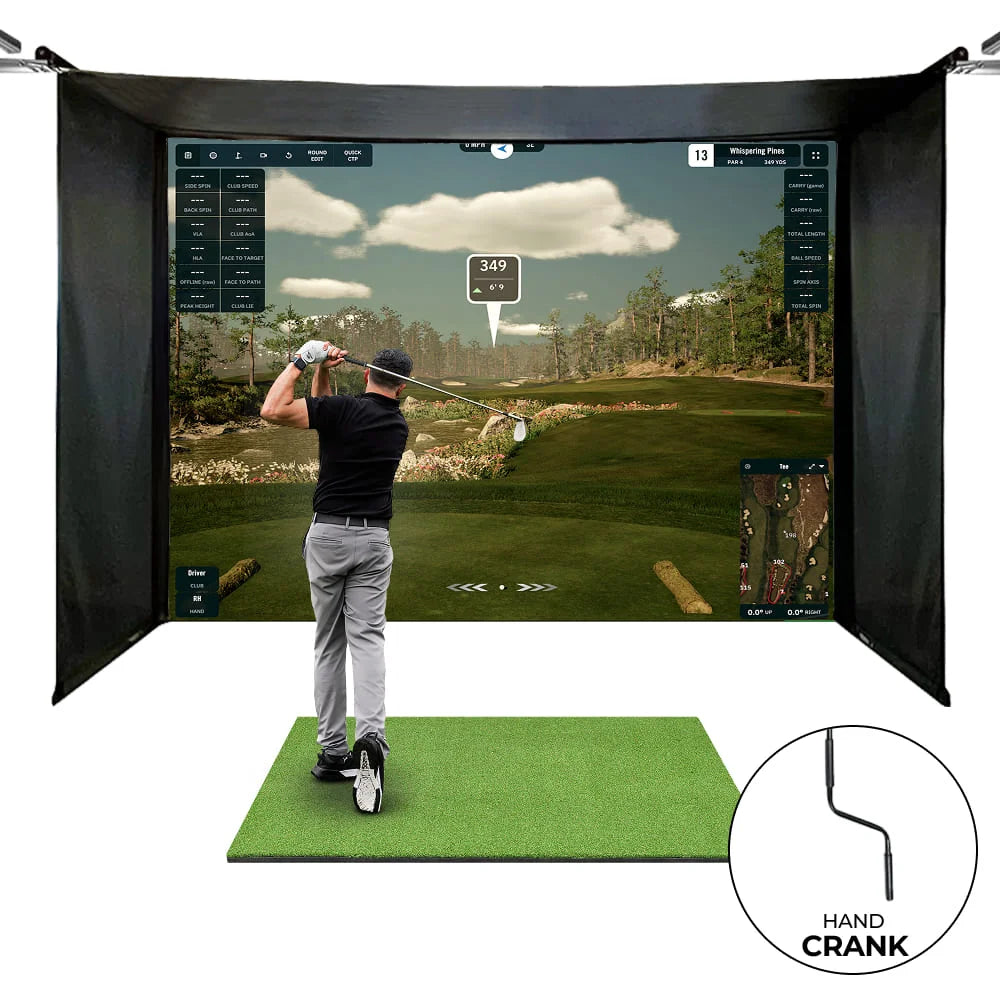

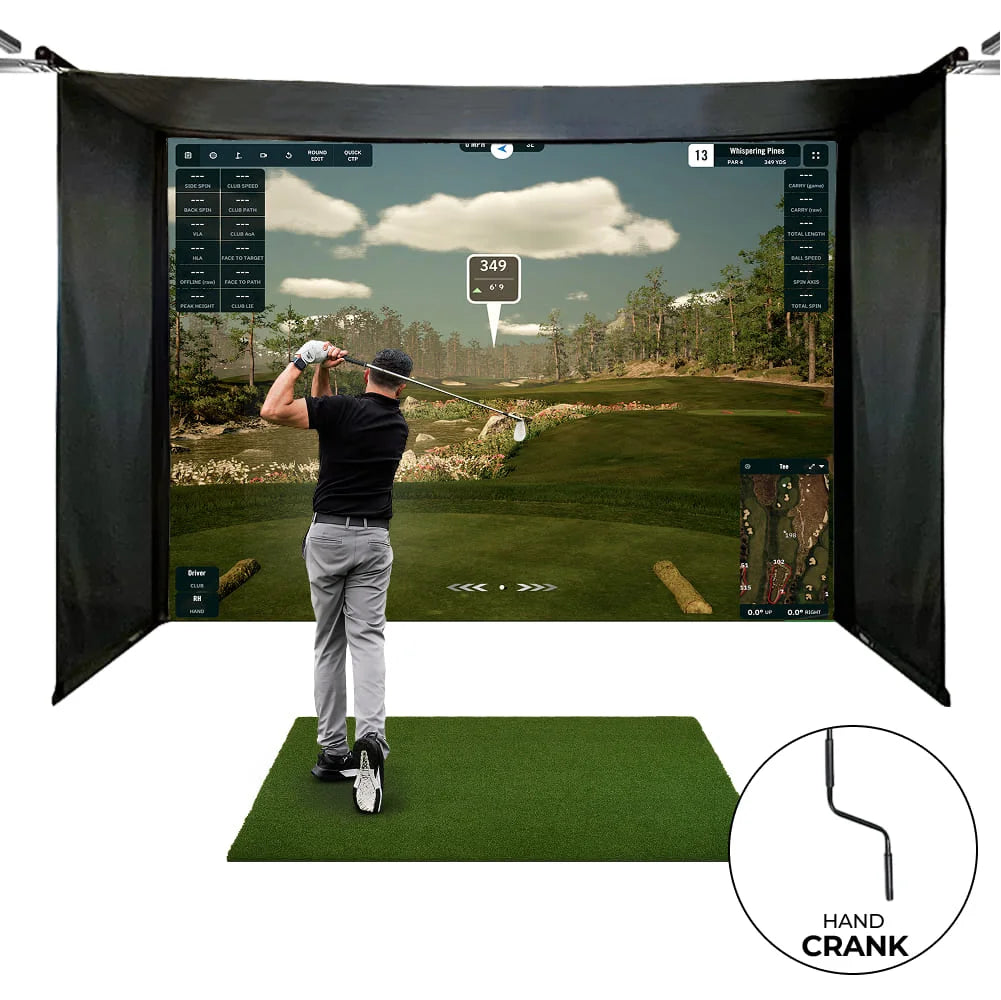

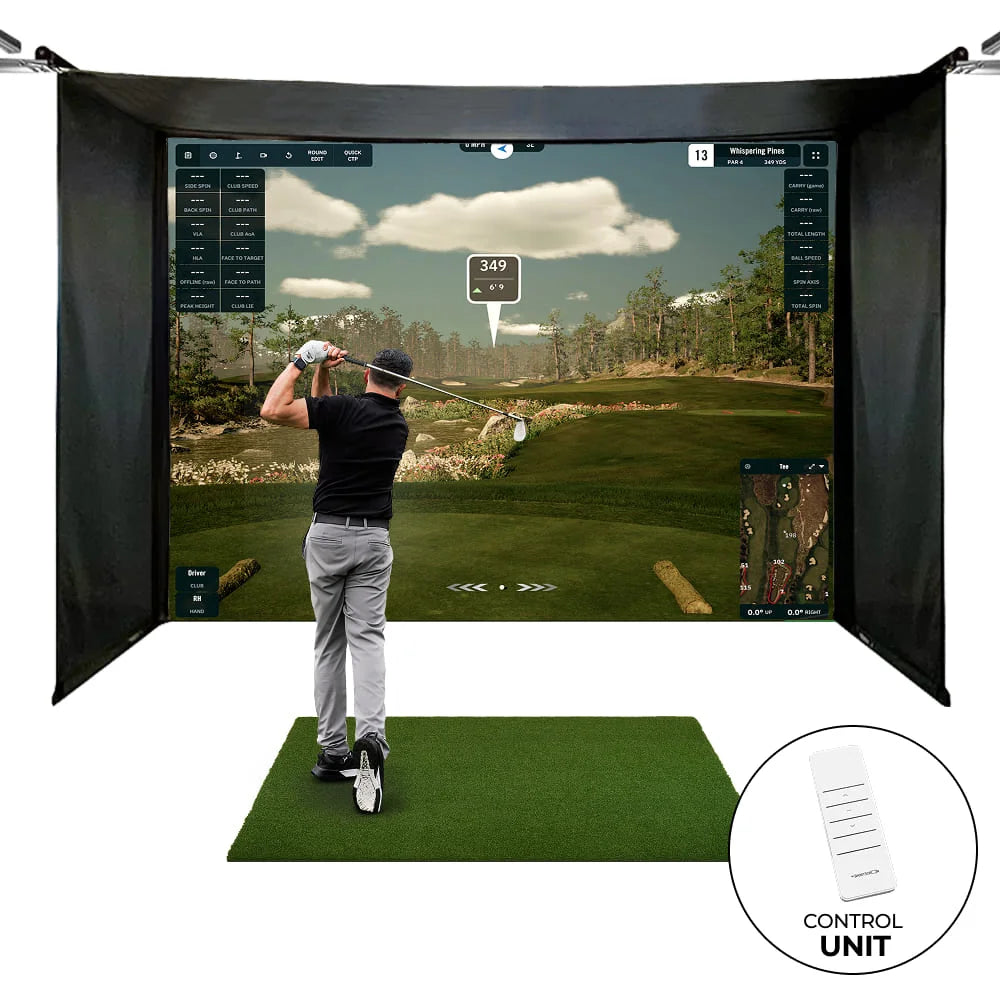

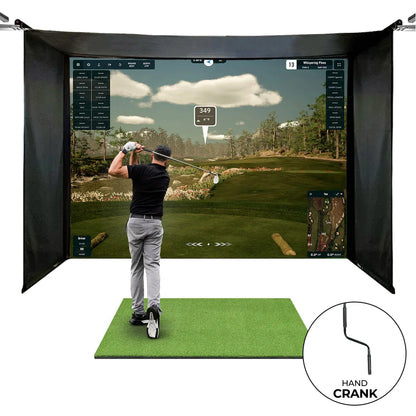

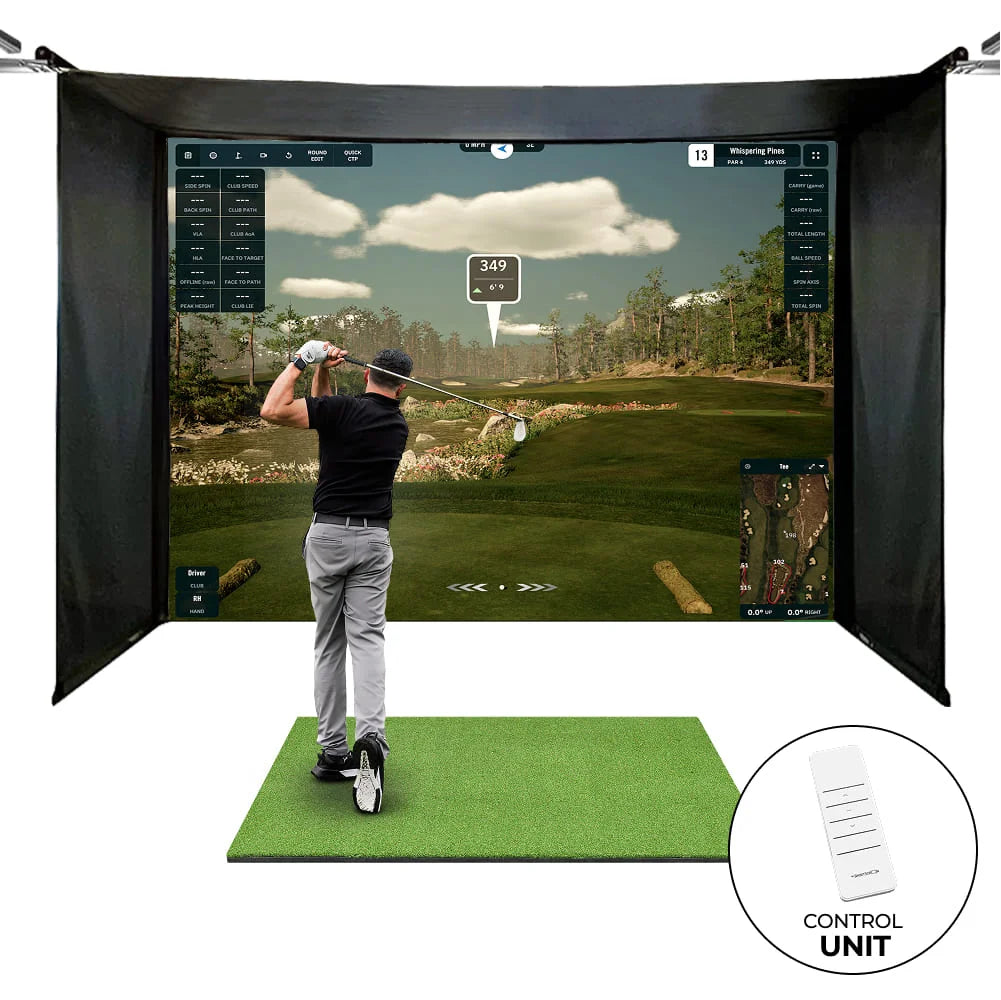

Vanish 16H
• Width - 4.7 m (15"6' ft)
• Height - 2.9 > 3 m (9"8' > 9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

Please leave at least 30cm behind and 20cm to the side of the enclosure.
