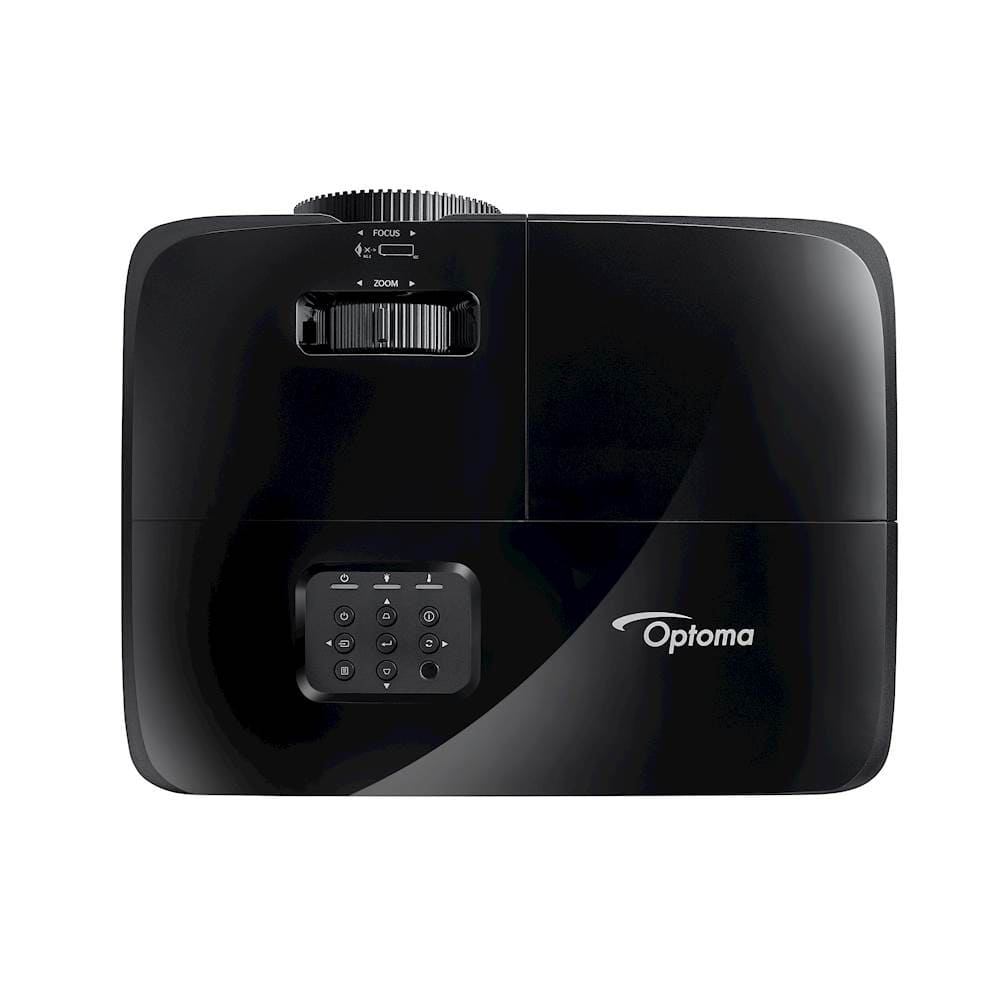

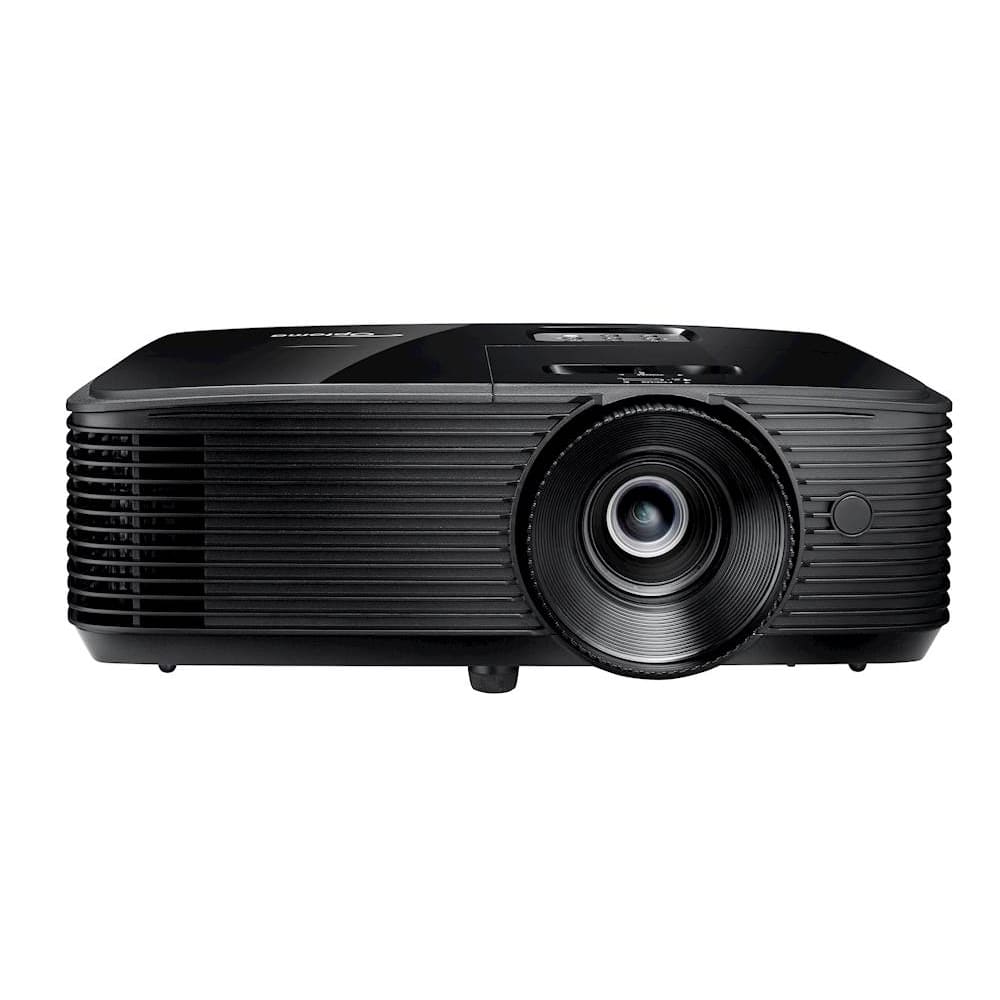

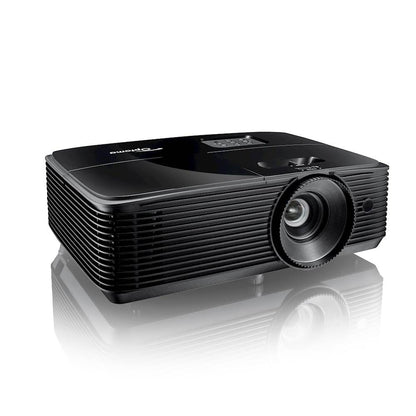

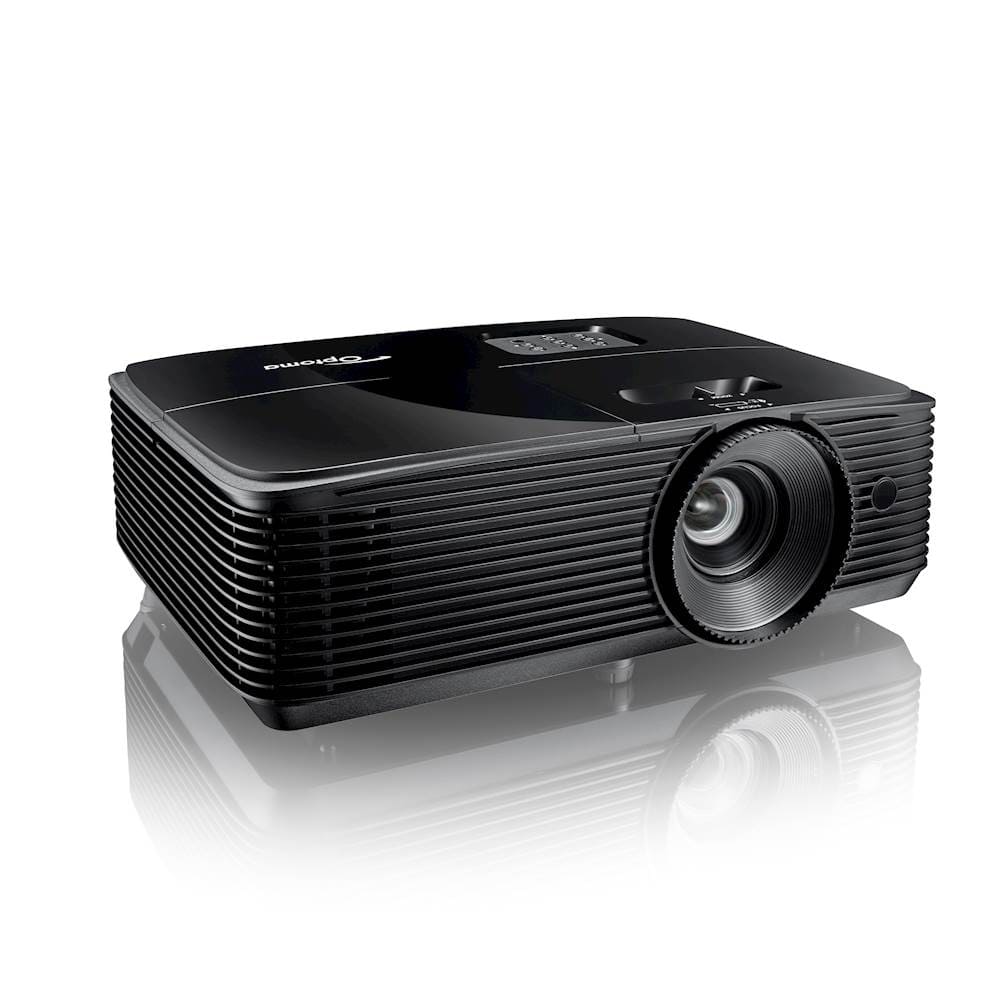

Optoma H190X Projector
Optoma H190X Projector
Couldn't load pickup availability
Delivery Info
+
We offer delivery to many international countries with warehouses located in the USA, UK, Europe and China. For more details, please visit our Shipping policy page.
Specification
+
Display/image
Display technology: DLP®
Resolution: WXGA (1280x800)
Brightness: 3,900 lumens
Contrast ratio: 30,000:1
Native aspect ratio: 16:10
Aspect ratio - compatible: 4:3, 16:9
Keystone correction - vertical: +/-40°
Horizontal scan rate: 15.38 ~ 91.15Khz
Vertical scan rate: 50 ~ 85Hz, 120Hz for 3D
Uniformity: 75%
Screen size: 0.82m ~ 7.61m (32.24" ~ 299.53") diagonal
Lamp info
Light source type: Lamp
Lamp watts: 203
Lamp life hours (up to): 6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
Optical
Throw ratio: 1.55:1 ~ 1.73:1
Projection distance (m): 1m - 12m
Zoom: 1.1
Zoom type: Manual
Focal length (mm): 21.85mm ~ 24mm / 0.86" ~ 0.945"
Native offset: 112%
Connectivity

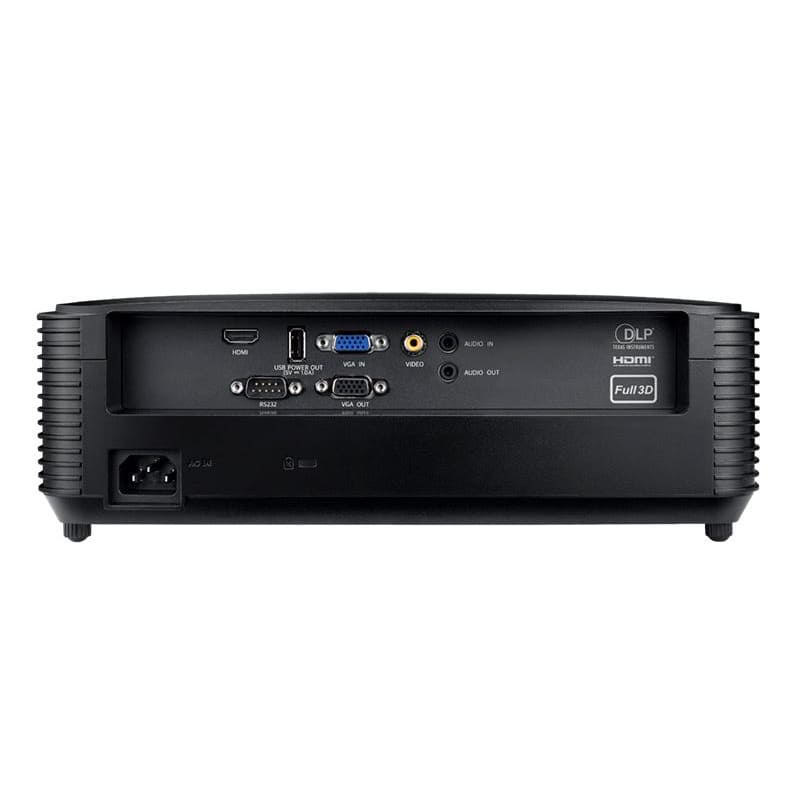

Connections:
• Inputs - 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm
• Outputs - 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1A
• Control - 1 x RS232
General
Noise level (min): 27dB
Noise level (max): 29dB
PC compatibility: FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility: NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4.43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility: Side-by-Side: 1080i50 / 60, 720p50 / 60; Frame-pack: 1080p24, 720p50 / 60; Over-Under: 1080p24, 720p50 / 60
3D: Full 3D
Security: Security bar, Kensington Lock, Password protected interface
OSD / display languages: 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions: 5°C~40°C / 41°F~104°F, max altitude 3000M / 9843ft, max humidity 85%
Remote control: Card style
Speaker count: 1
Watts per speaker: 10W
In the box: AC power cord, Remote control, Battery, Basic user manual
Optional wireless models: WHD200
Power
Power supply: 100 ~ 240V, 50 ~ 60Hz
Power consumption (standby): 0.5W
Power consumption (min): 187W
Power consumption (max): 225W
Weight and dimensions
Dimensions (W x D x H) mm: 316 x 244 x 108
Gross weight: 3.58 kg
Net weight: 3.05 kg
Share
Optoma H190X Projector
The Optoma H190X can be used for a golf simulator setup, especially for budget-conscious customers. It offers strong brightness at 3900 ANSI lumens, making it suitable for many indoor simulator rooms. However, it is a standard throw projector, meaning it usually needs to be mounted further back from the screen, which may cause shadows or placement issues in smaller golf bays. Its 1280×800 WXGA resolution is usable, but not as sharp as a native 1080p projector.
Pros: Bright image, budget-friendly option, HDMI connectivity, suitable for basic simulator setups.
Cons: Standard throw requires more room depth, lower resolution than 1080p models, and may not be ideal for compact simulator bays.
