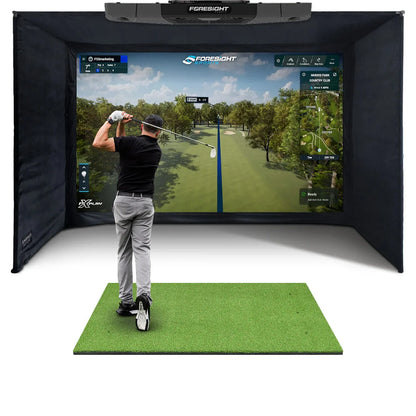

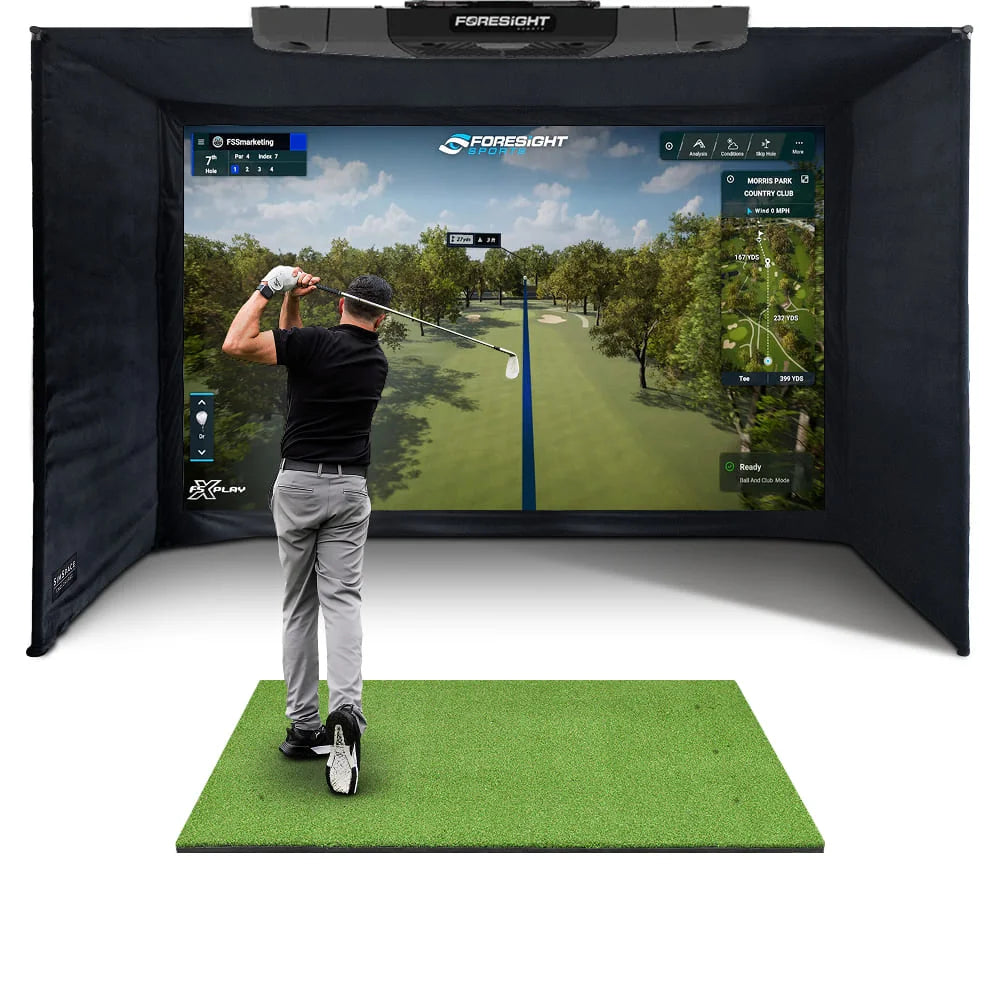

Foresight Falcon Simulator Bundle

SimSpace Pro Golf Enclosures
We offer in-depth guides, images and videos on how to set up the SimSpace enclosure. For more information, please visit our dedicated page.

Foresight Falcon Launch Monitor

• Quick Start Guide

Check your simulator layout before installation and ensure there is enough room for both right- and left-handed golfers. The recommended ceiling height is 9.5 to 10.5 feet, with the centre of the hitting mat positioned 10 to 12 feet from the screen and around 4 feet from the Falcon. The ceiling mount should be secured to a suitable ceiling structure by qualified installers, then the Falcon should be latched into the mount. Run the Ethernet cable from the PC, router or network location to the Falcon, connect the power cord to a GFCI-protected outlet or power strip, power the unit on, then complete overhead calibration through the Foresight Calibration App before connecting in FSX Play or FSX Pro.

SimSpace Golf Enclosure

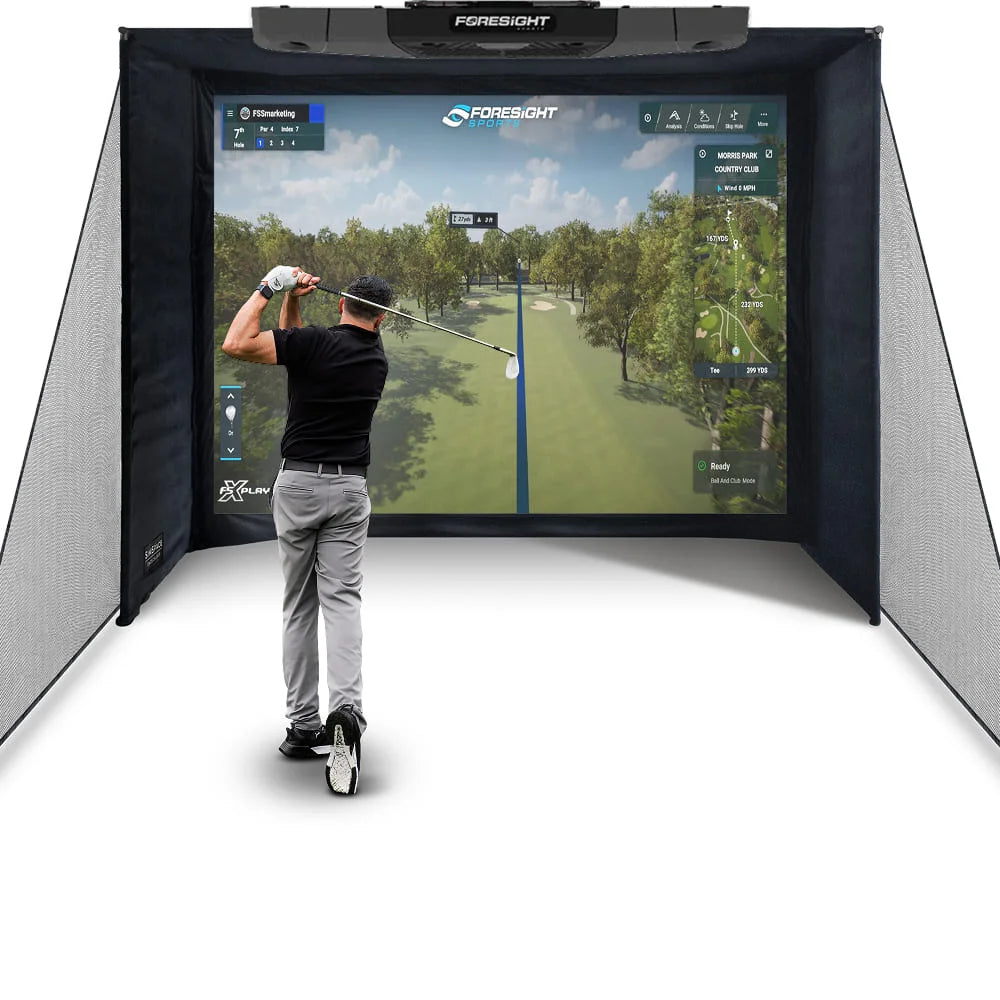

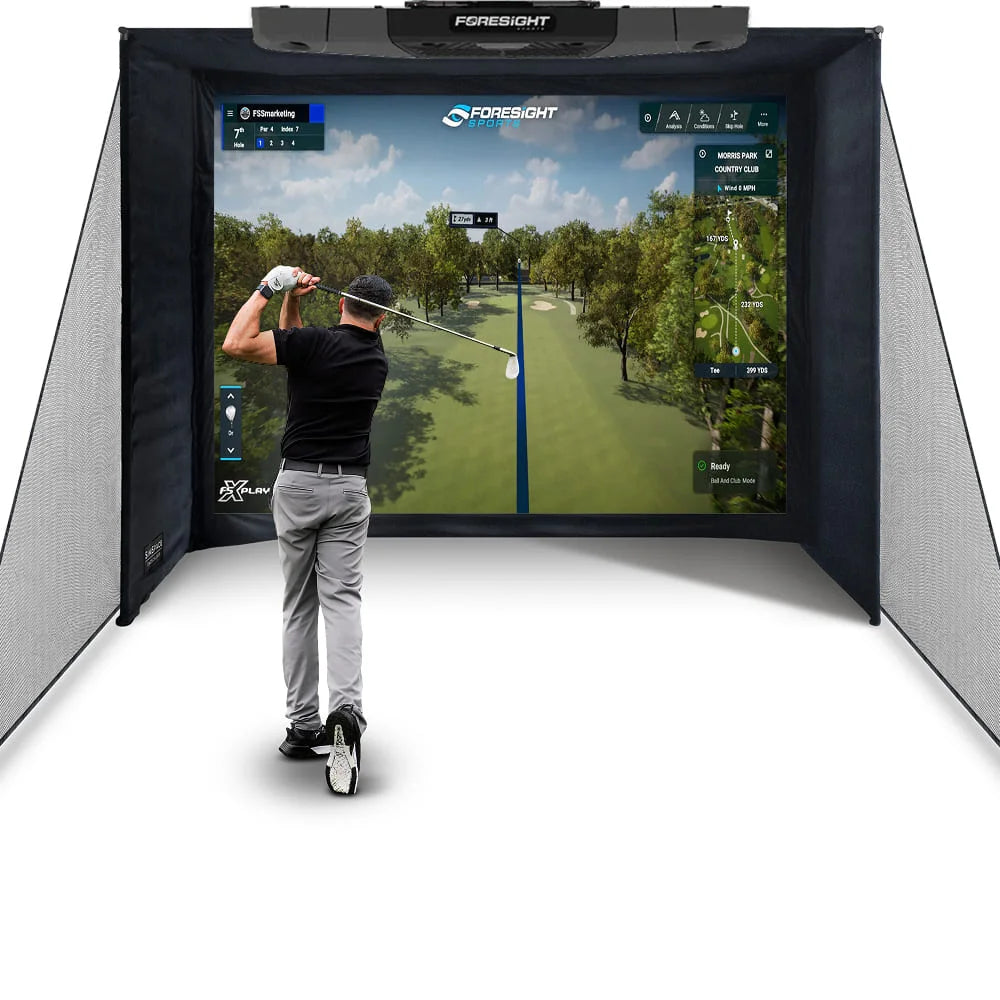

SIM 0
• Outer Frame: 3.4(w) x 2.6(h) x 1.1(d) metres
• Inner Frame: 3.3(w) x 2.5(h) x 1(d) metres
• Screen: 3.1(w) x 2.3(h) metres / Ratio 4:3*

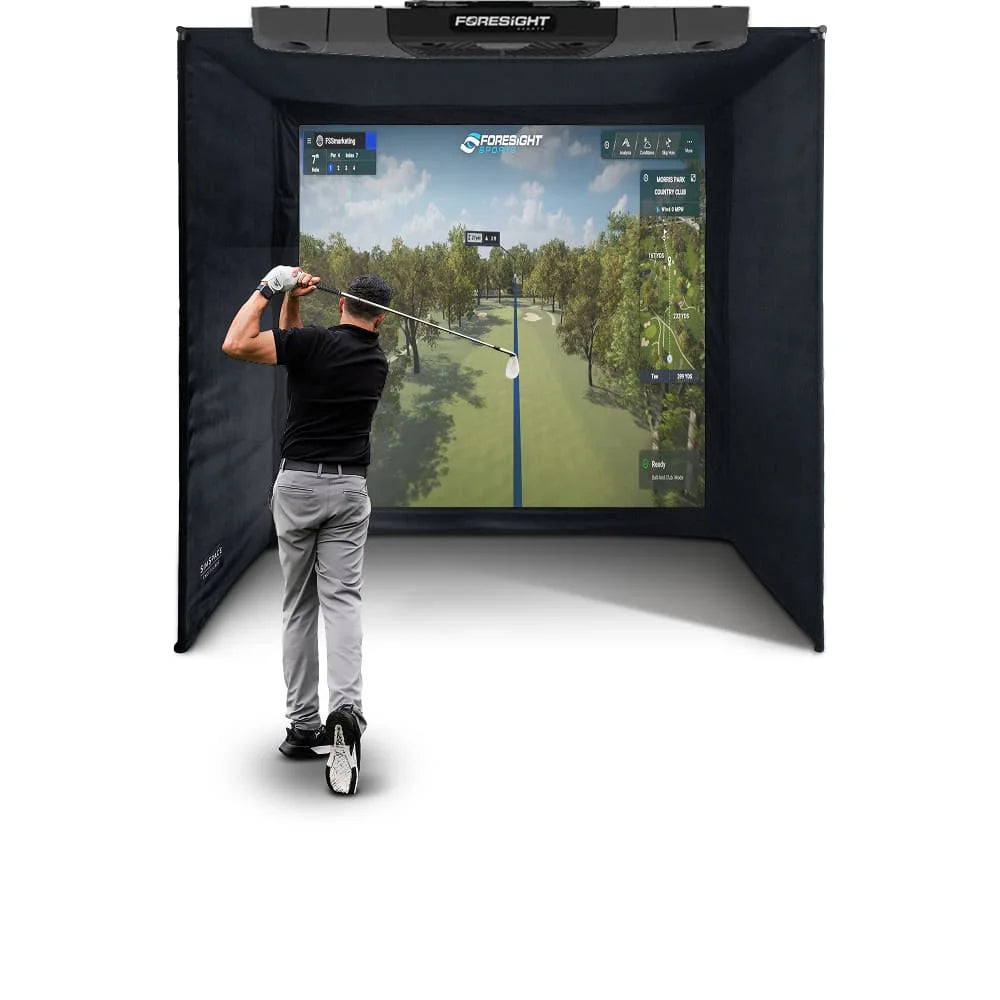

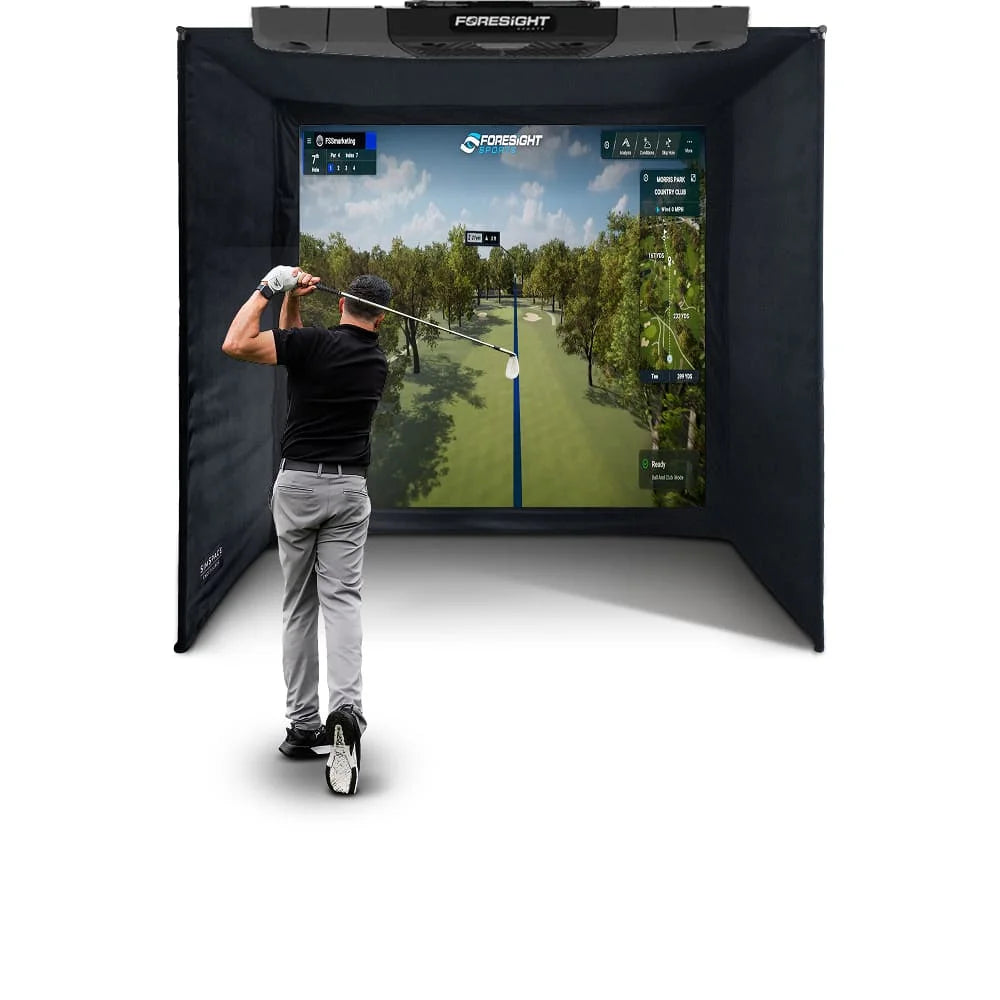

SIM 1
• Outer Frame: 2.7(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 2.6(w) x 2.5(h) x 1.5(d) metres
• Screen: 2.4(w) x 2.3(h) metres / Ratio 1:1*

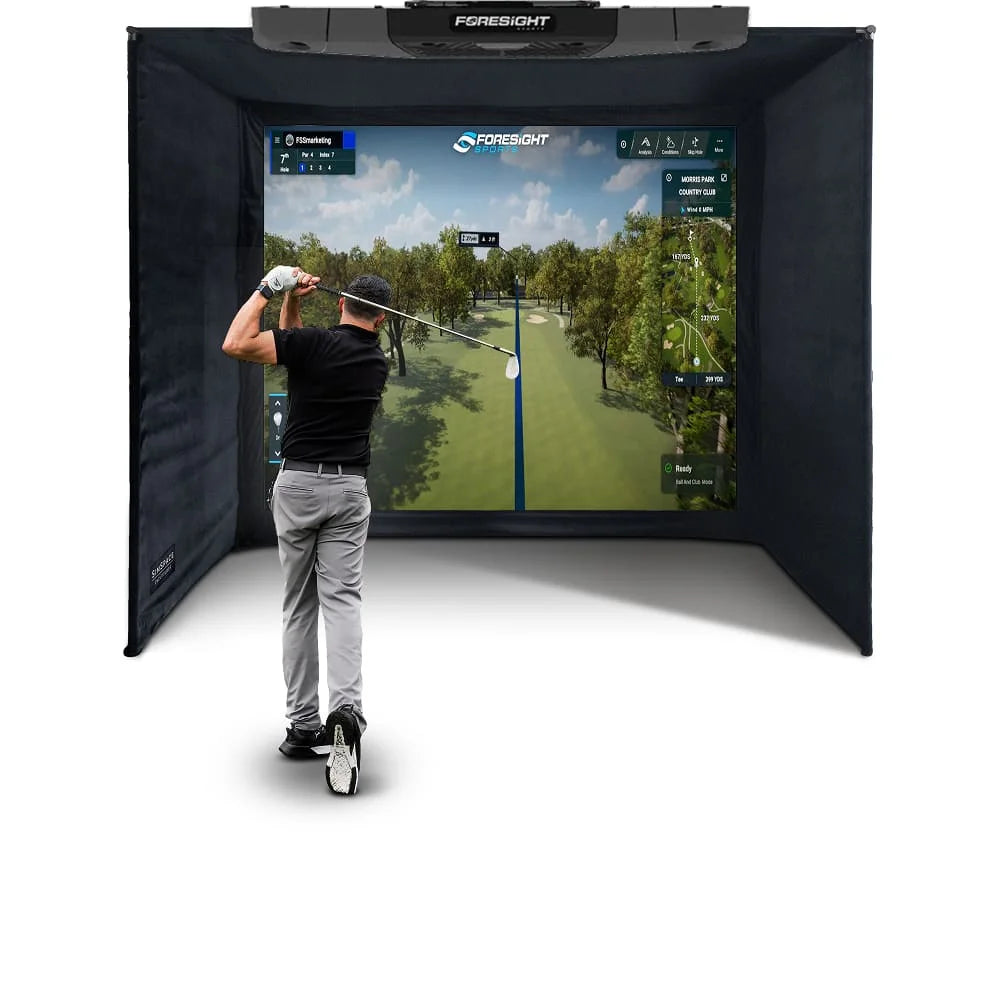

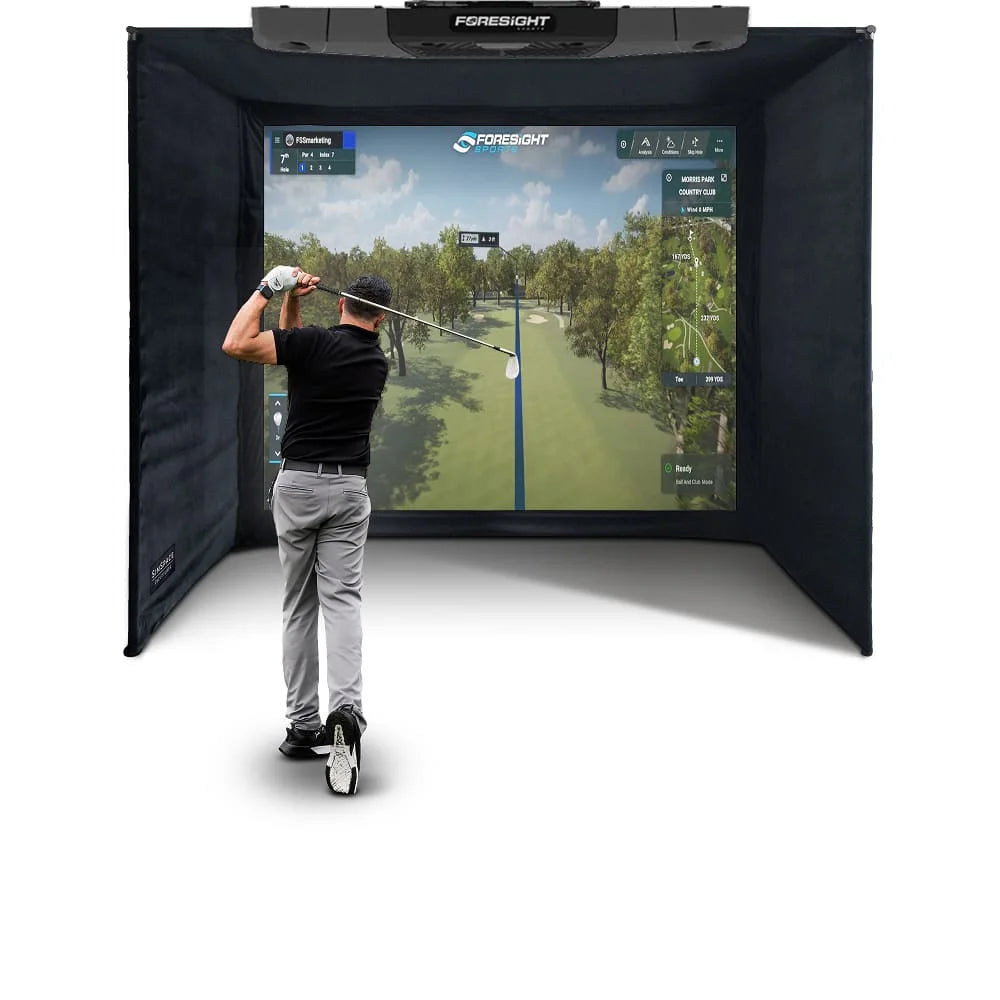

SIM 2
• Outer Frame: 3.1(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 3.0(w) x 2.5(h) x 1.5(d) metres
- Screen: 2.8(w) x 2.3(h) metres / Ratio 4:3*

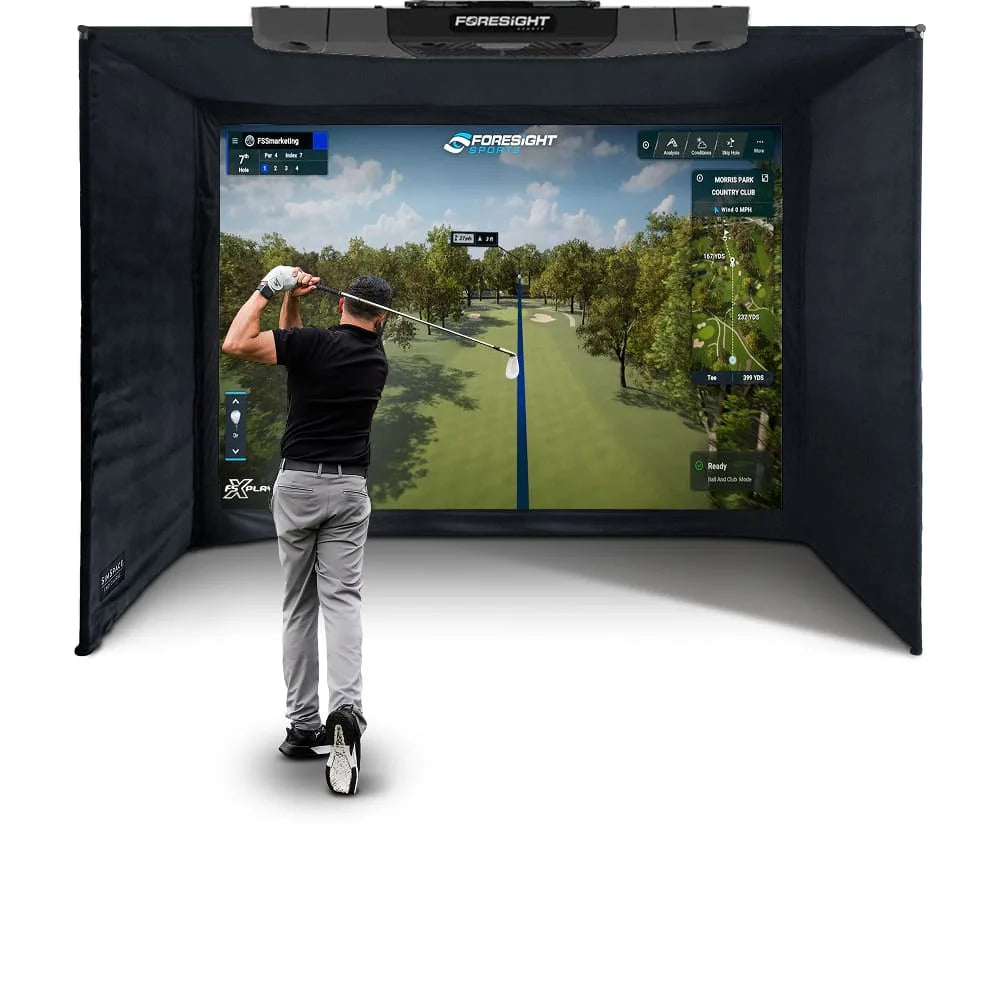

SIM 3
• Outer Frame: 3.7(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 3.6(w) x 2.5(h) x 1.5(d) metres
• Screen: 3.4(w) x 2.3(h) metres / Ratio 4:3*

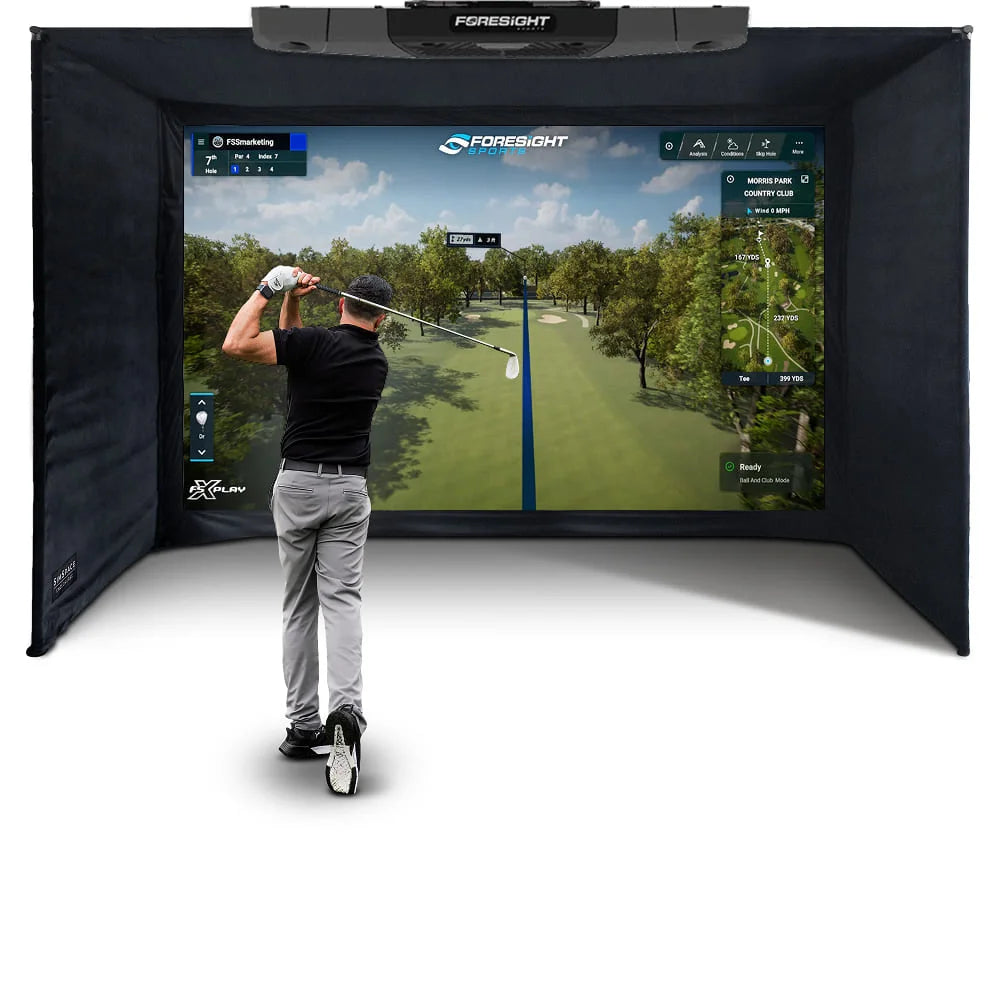

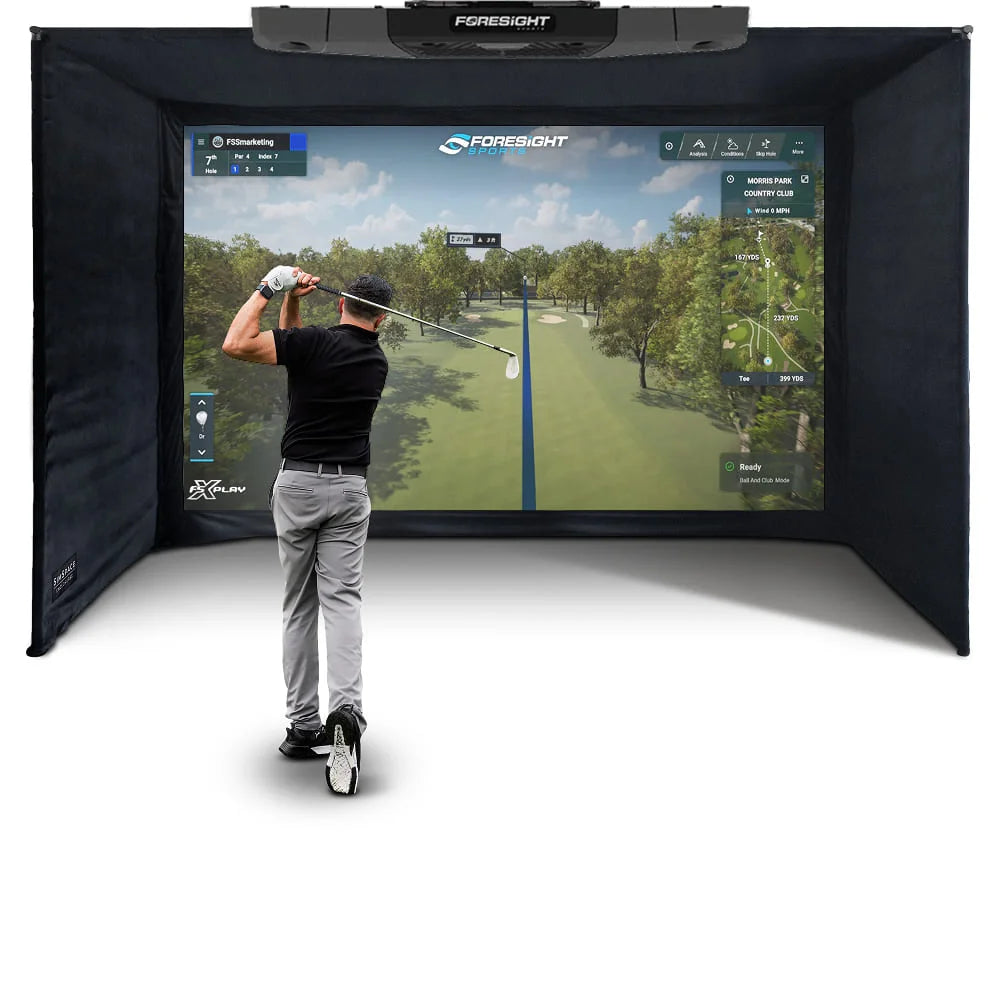

SIM 4
• Outer Frame: 4.1(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 4.0(w) x 2.5(h) x 1.5(d) metres
• Screen: 3.8(w) x 2.3(h) metres / 16:10*

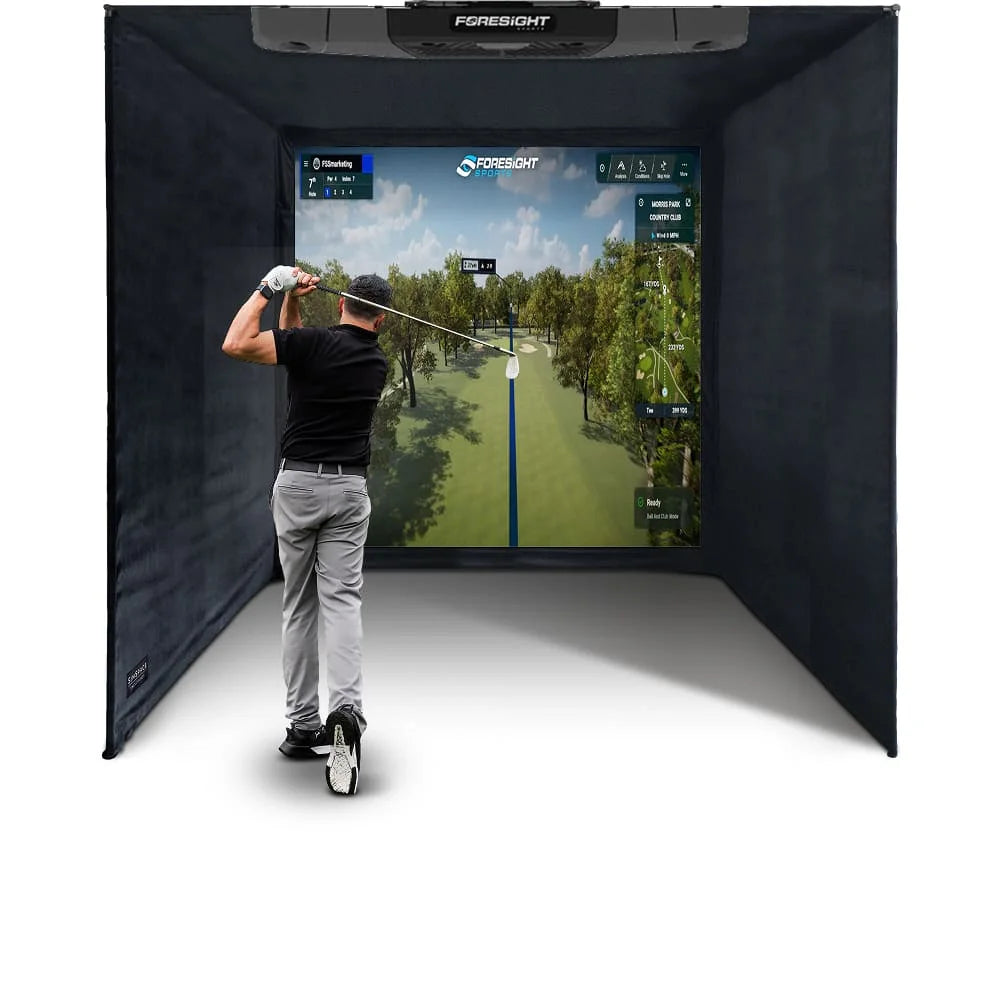

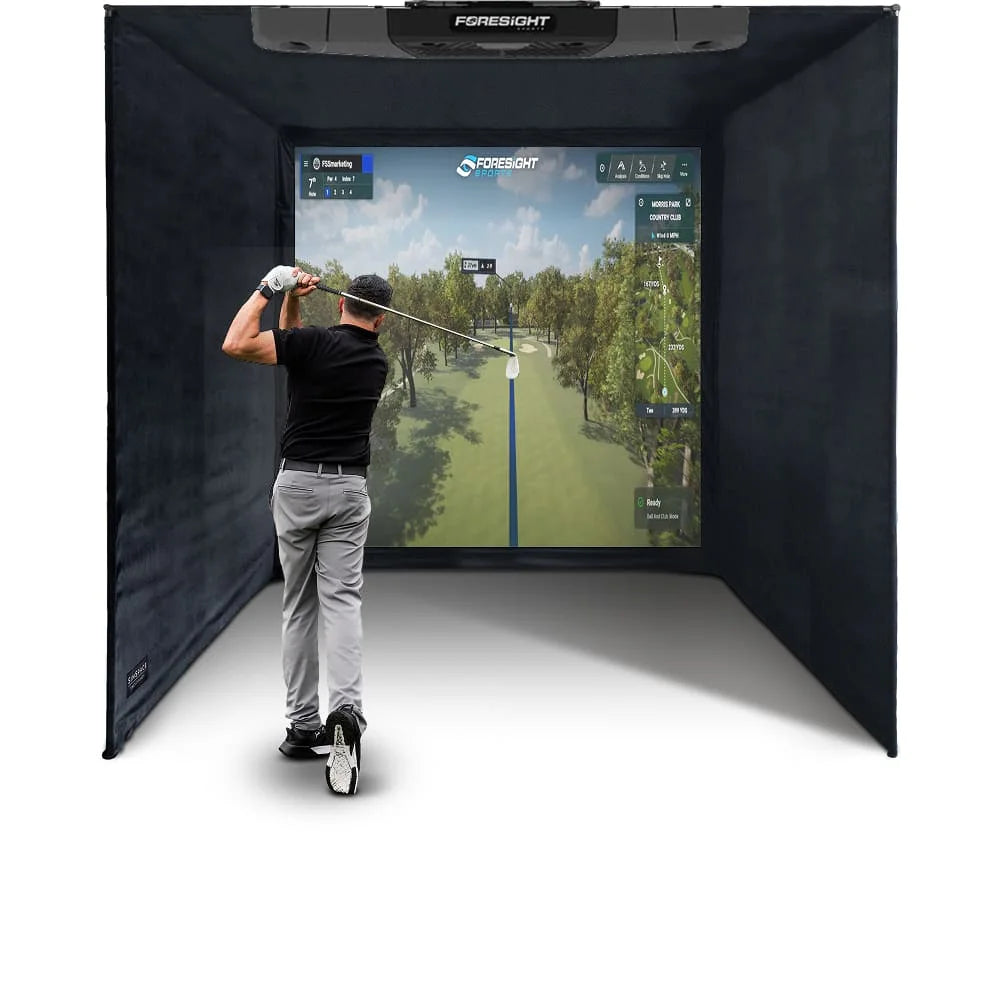

SIM 5
• Outer Frame: 3.1(w) x 3.1(h) x 3.1(d) metres
• Inner Frame: 3.0(w) x 3.0(h) x 3.0(d) metres
• Screen: 2.8(w) x 2.8(h) metres / Ratio 1:1*

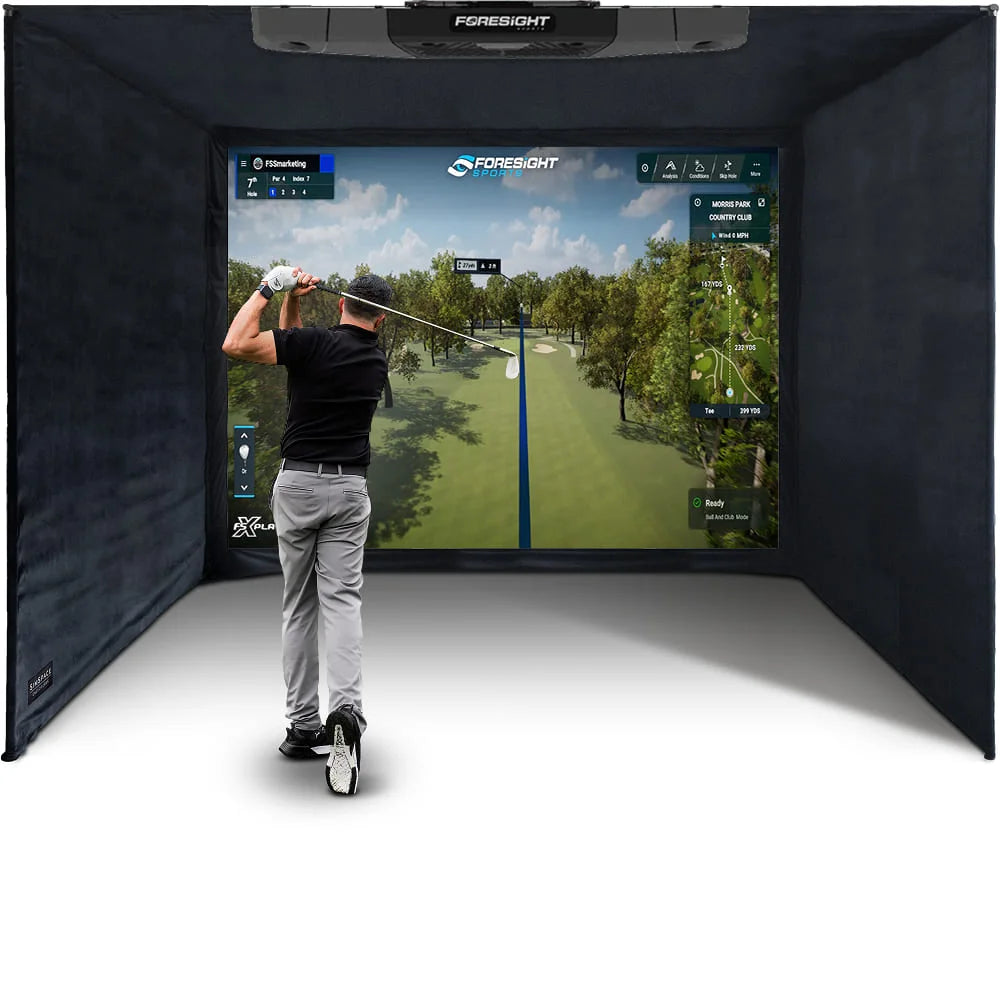

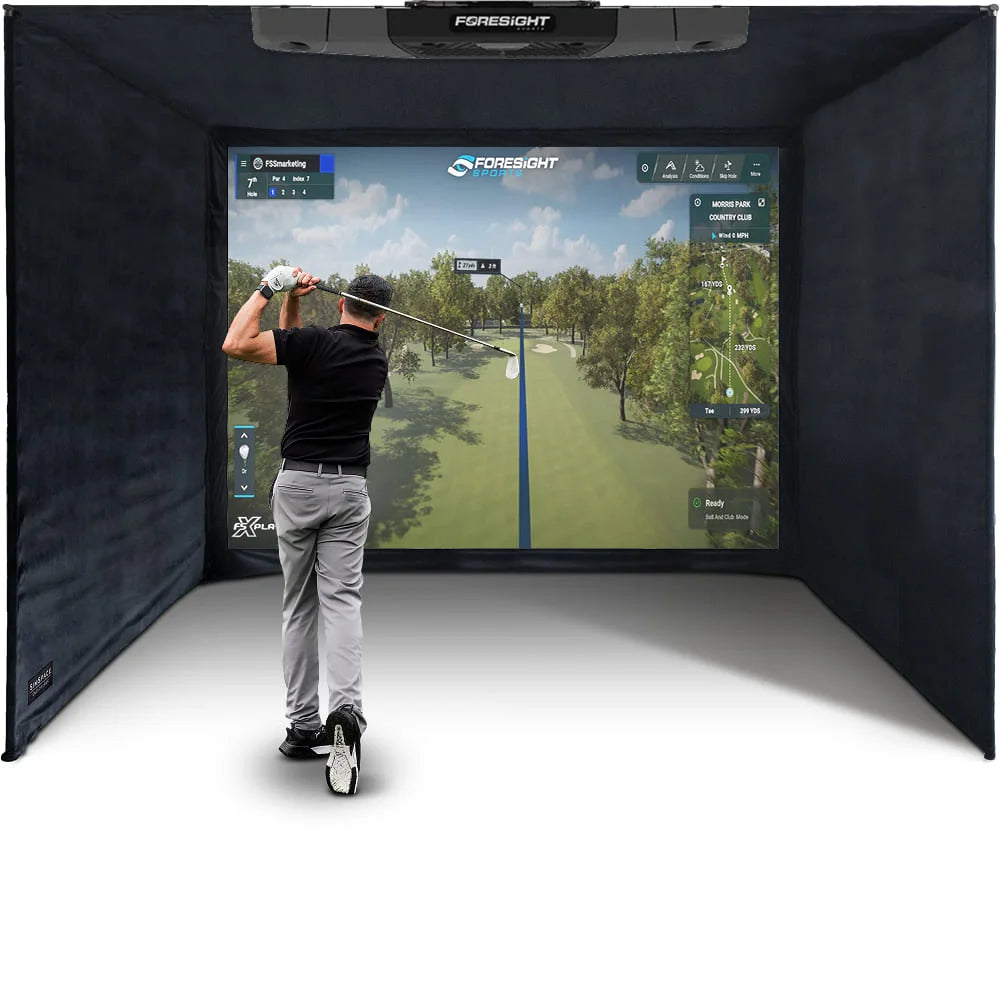

SIM 6
• Outer Frame: 4.0(w) x 3.1(h) x 3.1(d) metres
• Inner Frame: 4.0(w) x 3.0(h) x 3.0(d) metres
• Screen: 3.8(w) x 2.8(h) metres / Ratio 4:3*

Leave at least 50cm behind & 20cm on either side of the enclosure as a buffer space for ball impacts! All measurements are estimates.

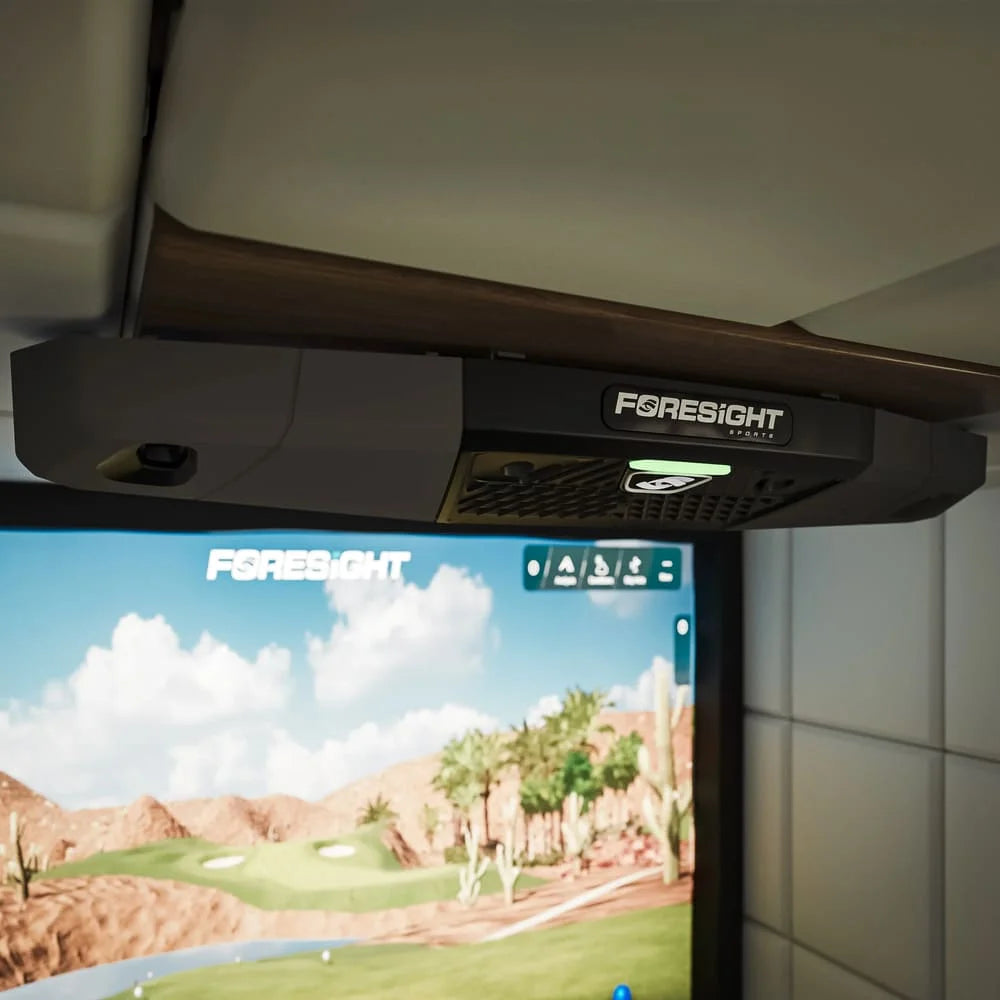

Foresight Falcon Launch Monitor

• Launch monitor type: Overhead-mounted photometric launch monitor
• Camera configuration: 4-camera Quadrascopic system
• Tracking technology: Infrared object tracking and high-speed, high-resolution camera capture
• Ball data: Ball speed, launch angle, side angle, backspin / total spin, side spin / spin axis, carry distance
• Club data: Club head speed, efficiency, angle of attack, club path, face angle, loft and lie at impact, impact location, closure rate
• Flight data: Carry distance, total distance, peak height, offline distance, curvature, descent angle, hang time, distance from target
• Group data: Dispersion, range, spray, accuracy, range consistency, spray consistency, impact point consistency
• Hitting zone: 139.7cm x 65.6cm
• Hitting zones: Club zone and ball-only zone
• Mount type: Automatic latching ceiling mount
• Impact protection: Replaceable rubberised impact protection
• Size: 1.09m / 1110mm length
• Unit dimensions: 1110mm length x 270mm width x 135mm height
• Weight: 11.8kg
• Frame: Aluminium
• Power supply: Internal
• Power connection: Power cord supplied
• Connectivity: Wi-Fi, Bluetooth, Ethernet and USB-C
• Recommended connection: Direct Ethernet connection to PC or private secure network
• Recommended ceiling height: 9.5 to 10.5 feet
• Recommended screen distance: Hitting mat centre 10 to 12 feet from screen
• Recommended device distance: Hitting mat centre approximately 4 feet from Falcon
• Operating temperature: 35°F to 115°F
• Software connection: FSX Play and FSX Pro
• Calibration: Foresight Calibration App / overhead device calibration software
• Installation note: Installation should be completed by qualified installers, with ceiling structure capable of supporting the required load.
