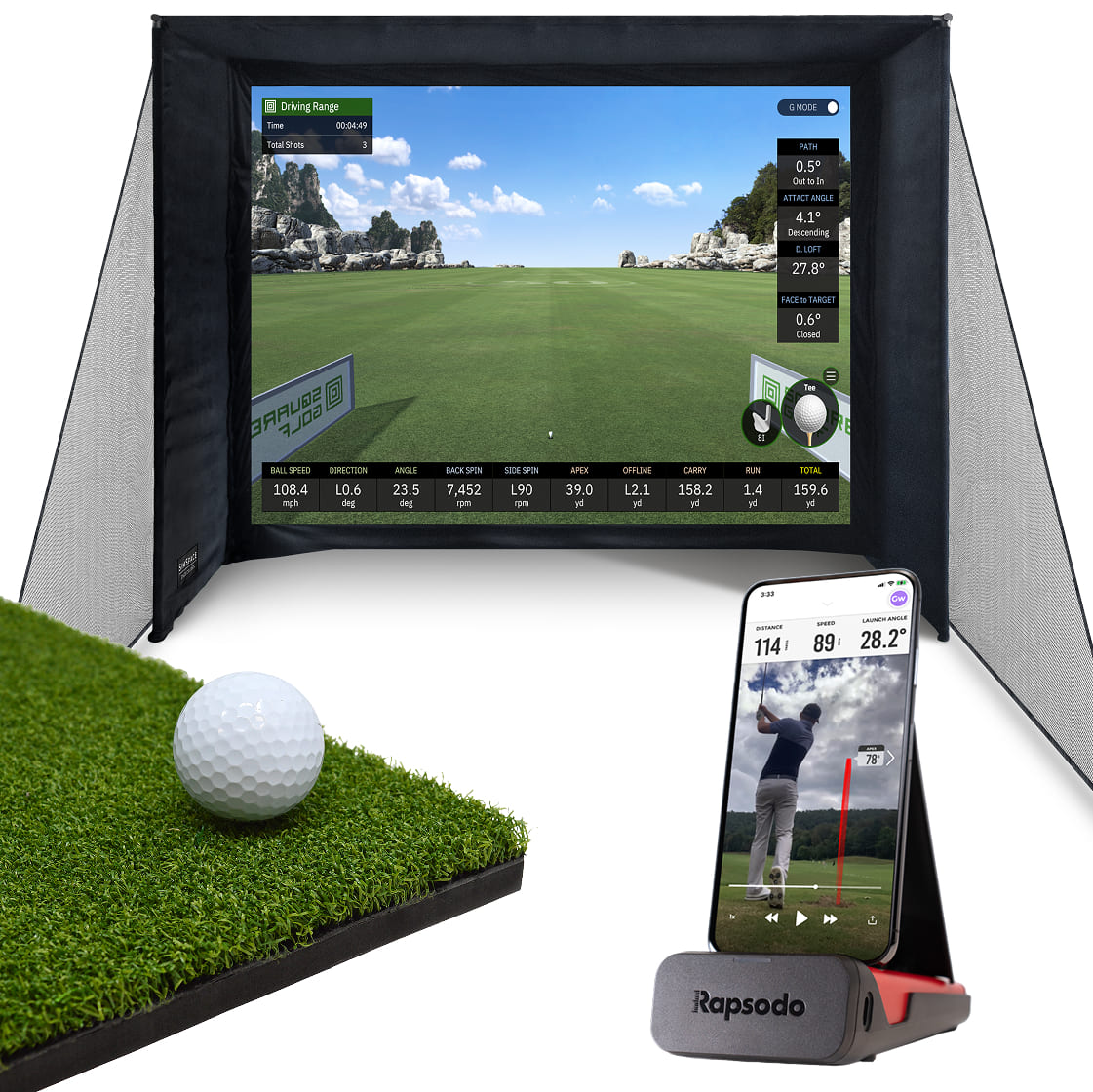

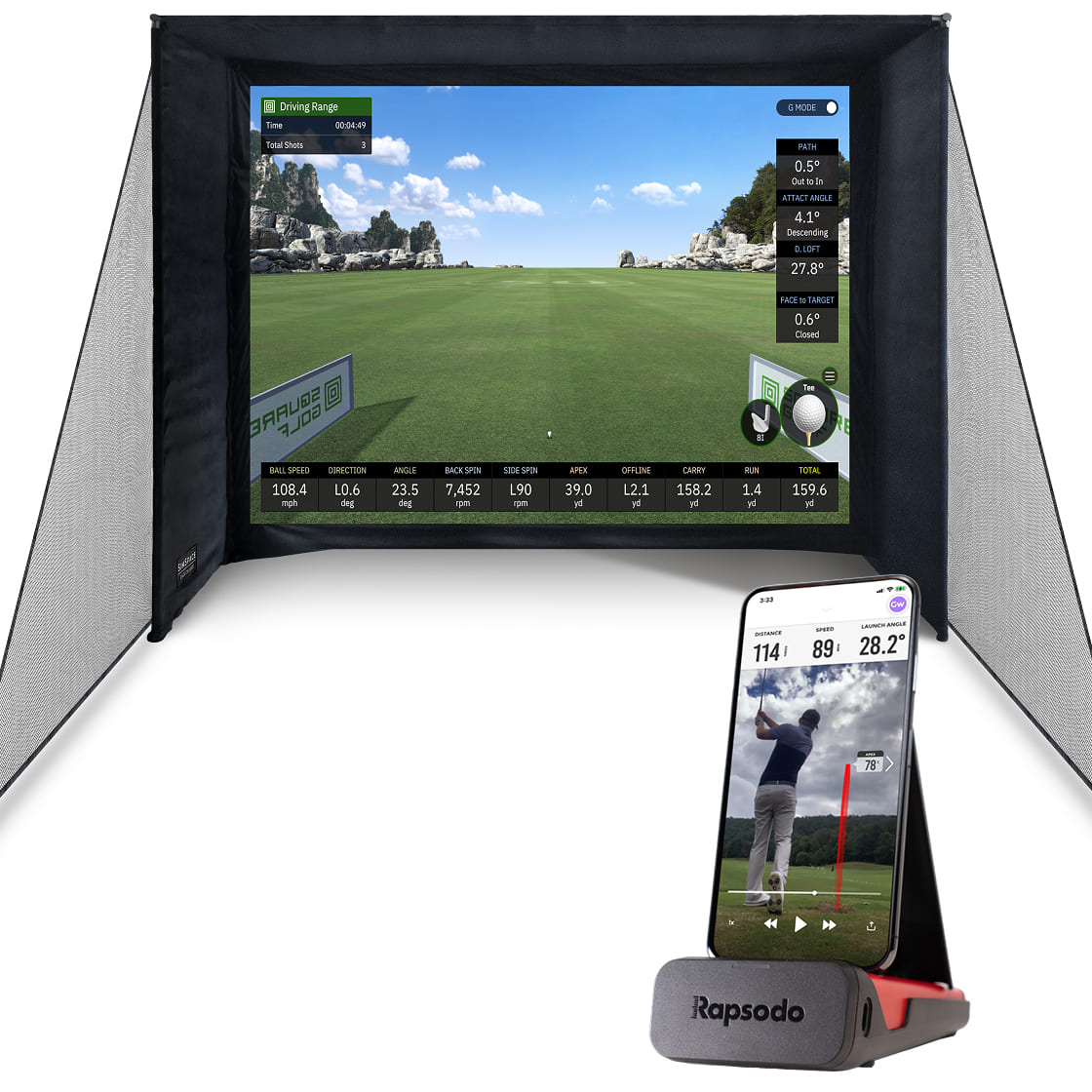

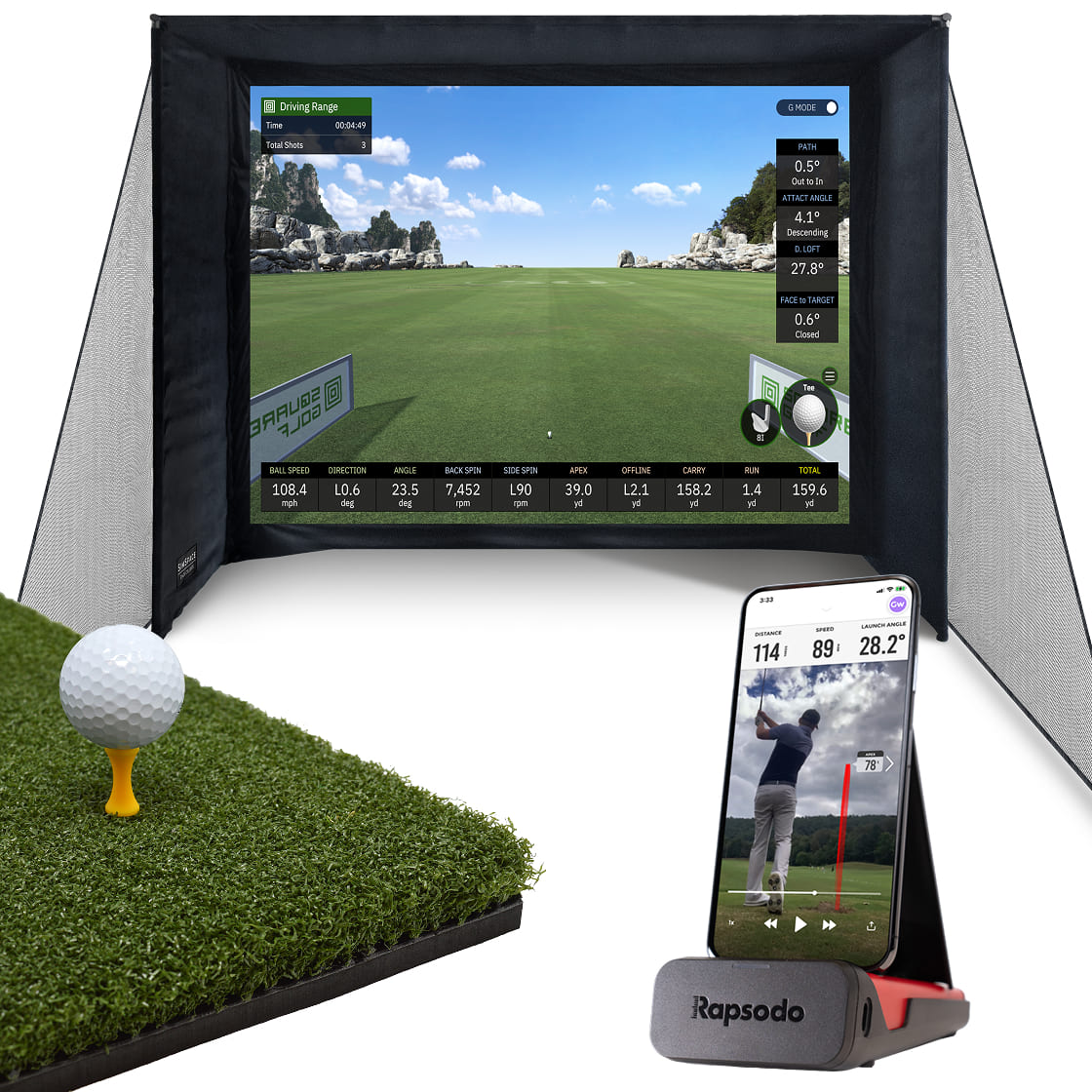

Rapsodo MLM Home Simulator-Paket

SimSpace Golf Enclosures

We offer in-depth guides, images and videos on how to set up the SimSpace enclosure. For more information, please visit our dedicated page.

Rapsodo MLM Launch Monitor

• User Manual
• Quick Start Guide

To set up the Rapsodo MLM Launch Monitor, fully charge the unit before use, then download and open the Rapsodo MLM app on a compatible iPhone or iPad. Turn on Bluetooth, power on the MLM, and connect the device through the app by going to Profile > Connect Device and selecting your MLM. Once connected, press Play, choose Practice, and place the launch monitor on a level surface approximately 6–8 feet behind the golf ball, aligned parallel to your target line. Make sure the phone or tablet is seated in the holder with the screen facing the player, and confirm that both the golfer and ball are visible in the app’s camera view. When the LED turns green, the MLM is ready to capture shots and display launch data after each swing.

SimSpace Golf Enclosure

SIM 0
• Outer Frame: 3.4(w) x 2.6(h) x 1.1(d) metres
• Inner Frame: 3.3(w) x 2.5(h) x 1(d) metres
• Screen: 3.1(w) x 2.3(h) metres / Ratio 4:3*

SIM 1
• Outer Frame: 2.7(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 2.6(w) x 2.5(h) x 1.5(d) metres
• Screen: 2.4(w) x 2.3(h) metres / Ratio 1:1*

SIM 2
• Outer Frame: 3.1(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 3.0(w) x 2.5(h) x 1.5(d) metres
- Screen: 2.8(w) x 2.3(h) metres / Ratio 4:3*

SIM 3
• Outer Frame: 3.7(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 3.6(w) x 2.5(h) x 1.5(d) metres
• Screen: 3.4(w) x 2.3(h) metres / Ratio 4:3*

SIM 4
• Outer Frame: 4.1(w) x 2.6(h) x 1.6(d) metres
• Inner Frame: 4.0(w) x 2.5(h) x 1.5(d) metres
• Screen: 3.8(w) x 2.3(h) metres / 16:10*

SIM 5
• Outer Frame: 3.1(w) x 3.1(h) x 3.1(d) metres
• Inner Frame: 3.0(w) x 3.0(h) x 3.0(d) metres
• Screen: 2.8(w) x 2.8(h) metres / Ratio 1:1*

SIM 6
• Outer Frame: 4.0(w) x 3.1(h) x 3.1(d) metres
• Inner Frame: 4.0(w) x 3.0(h) x 3.0(d) metres
• Screen: 3.8(w) x 2.8(h) metres / Ratio 4:3*

Leave at least 50cm behind & 20cm on either side of the enclosure as a buffer space for ball impacts! All measurements are estimates.

Rapsodo MLM Launch Monitor

• Device dimensions: Approx. 6.85 x 7.72 x 2.28 in
• Device weight: Approx. 440 g
• Package dimensions: Approx. 6.85 x 4.76 x 2.64 in
• Package weight: Approx. 0.54 kg
• Measurement technology: Radar and camera technology using the MLM unit and iOS device
• Measured data points: Carry distance, ball speed, club speed, smash factor, launch angle, and launch direction
• Battery type: Internal lithium-ion battery
• Battery life: Approx. 4 hours on a full charge
• Charging connection: USB-C charging cable
• First charge guidance: Charge for 6 hours before first use
• Typical recharge time: Approx. 2 hours from 0–100%
• Placement distance: Position approx. 6–8 ft behind the ball; quick start guide shows approx. 8 ft / 2.4 m
• Device placement: Must be on a level surface and aligned with the hitting area / target line
• Compatible devices: iOS devices only; compatible iPhone or iPad required
• Outdoor metrics: Club type, carry / total distance options, club speed, ball speed, smash factor, launch angle, and launch direction
• Indoor / Net Mode: Available on compatible iOS devices; some features such as shot trace, auto-club recognition, GPS shot map, competitions, and games are disabled in Net Mode
• Included in the box: MLM unit, USB-C charging cable, protective carry case, and quick start guide
• LED indicators: Red = waiting to connect, green = ready to take shot, blue = processing shot / connected depending on mode, amber = charging, blinking red = low battery, blinking white = firmware upgrading
• Weather resistance: Not water-resistant; do not use in rain or wet conditions
